G420BN
ActiveTE Connectivity Raychem Cable Protection

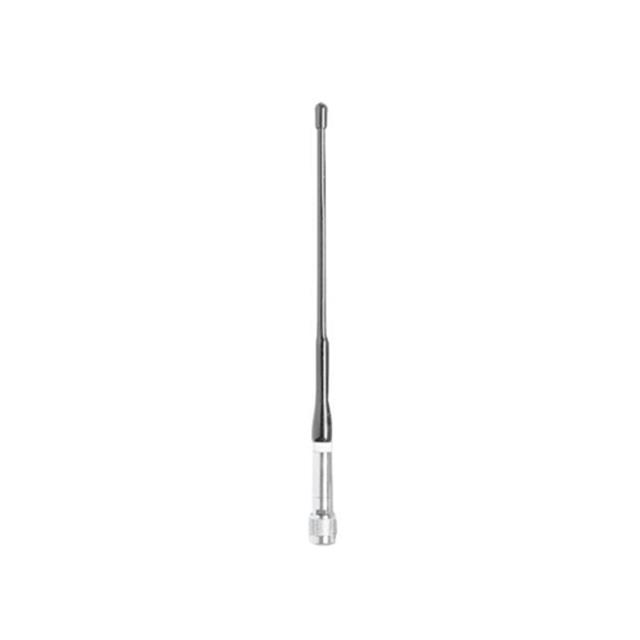

RF ANT 435MHZ WHIP STR BNC MALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G420BN
ActiveTE Connectivity Raychem Cable Protection
RF ANT 435MHZ WHIP STR BNC MALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G420BN |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency (Center/Band) | 435 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 450 MHz |
| Frequency Range [Min] | 420 MHz |
| Gain | 2.5 dBi |
| Height (Max) [Max] | 254 mm |
| Height (Max) [Max] | 10 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 50 W |
| Termination | BNC Male |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.90 | |
| 10 | $ 30.35 | |||
| 25 | $ 28.98 | |||
| 100 | $ 25.91 | |||
| 250 | $ 24.72 | |||
Description
General part information
G420 Series
RF ANTENNA Whip, Straight BNC Male Connector Mount
