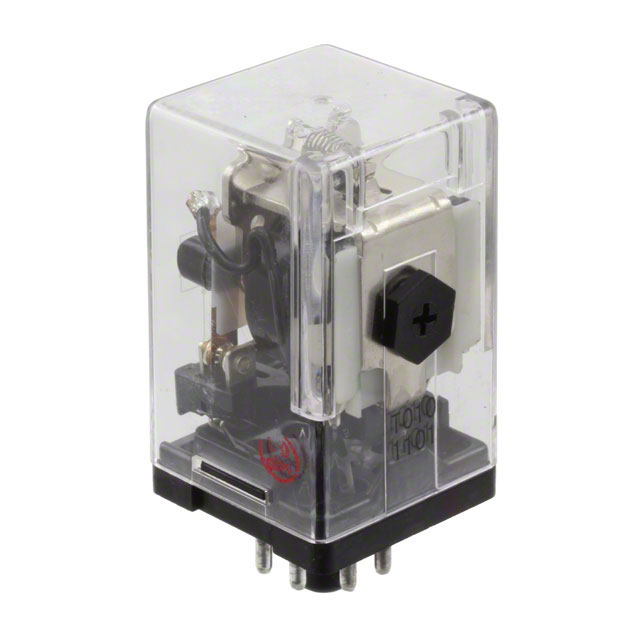

KAP-11AY-120
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
KAP-11AY-120
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 5A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KAP-11AY-120 |
|---|---|
| Coil Current | 17.5 mA |
| Coil Insulation | Class B |
| Coil Resistance | 2.25 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching [Max] | 1200 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 102 VAC |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Switching Voltage | 240 VAC |
| Termination Style | Plug In, 8 Pin (Octal) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KAP-11AY Series
General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
Documents
Technical documentation and resources
No documents available
