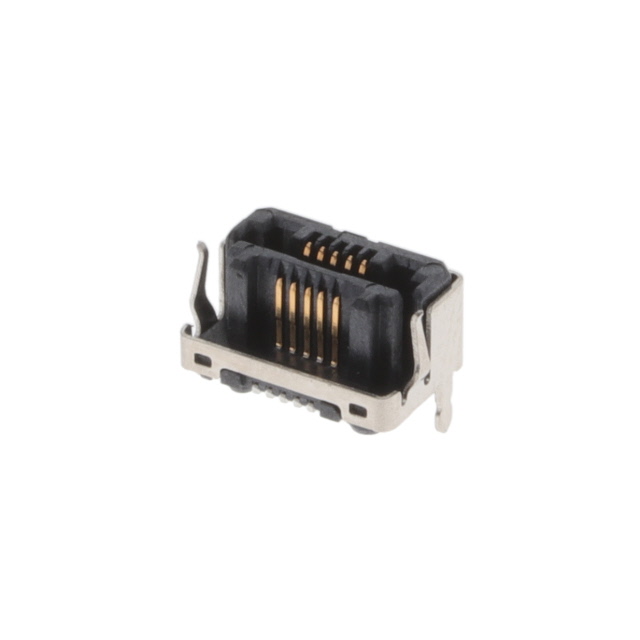

LSHM-105-02.5-L-DV-A-S-K-TR

Active

Samtec Inc.

CONN SELF-MATE 10POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SELF-MATE 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	LSHM-105-02.5-L-DV-A-S-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide, Shielded
Height Above Board [z]	3.96 mm
Height Above Board [z]	0.156 in
Mated Stacking Heights	8.5 mm, 5 mm, 6.5 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Positions	Features	Number of Rows	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mounting Type	Pitch [x]	Pitch [x]
Samtec Inc. LSHM-105-02.5-L-DV-A-S-K-TR	10	Board Guide Pick and Place Shielded	2	Gold	5 mm 5.5 mm 6.5 mm 8.5 mm	3.96 mm	0.156 in	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	Surface Mount	0.5 mm	0.02 in
Samtec Inc. LSHM-105-02.5-L-DV-A-N-K-TR	10	Board Guide Pick and Place	2	Gold	5 mm 5.5 mm 6.5 mm 8.5 mm	3.96 mm	0.156 in	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	Surface Mount	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
