FFS.00.250.NTCE31

Active

LEMO

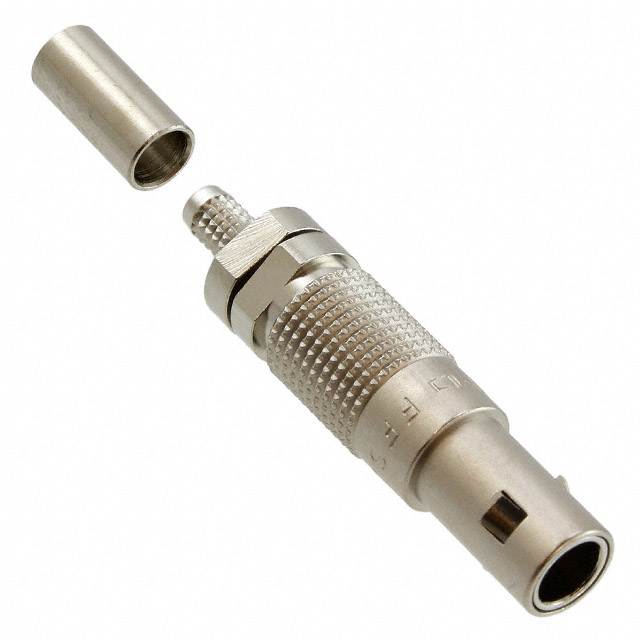

CONN NIMCAMA PLG STR 50OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFS.00.250.NTCE31

Active

LEMO

CONN NIMCAMA PLG STR 50OHM CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFS.00.250.NTCE31	FFS.00 Series

	-	-
Accessory Type	-	Crimp Ferrule
Backshell Material, Plating	-	Brass, Chrome
Body Finish	Nickel	Nickel, Chrome
Body Material	Brass	Brass
Cable Group	316, 188A, RG-174	316, 188A, RG-174, RG-142B, RG-178B, 196A, RG-58, 187, RG-179
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549, Coaxial
Connector Type	Male Pin, Plug	Male Pin, Plug, Male Pins
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	1 µm
Contact Finish Thickness - Mating	-	39.4 µin
Contact Material	-	Brass
Contact Termination	Crimp	Crimp
Current Rating (Amps)	-	8 A
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	-	Backshell
For Use With/Related Products	-	00 Series Connector
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Insert Material	-	Polytetrafluoroethylene (PTFE)
Mating Cycles	5000	5000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Number of Positions	-	1
Operating Temperature [Max]	260 ░C	250 - 260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	S
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	113
Shield Termination	Crimp	Crimp
Shielding	-	Shielded
Termination	-	Crimp
Voltage Rating	700 VDC	700 VDC

FFS.00 Series

CRIMP FERRULE FOR FFS.00.

Part	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Material	Cable Group	Connector Style	Mounting Type	Shield Termination	Center Contact Plating	Ingress Protection	Contact Termination	Connector Type	Number of Ports	Body Finish	Fastening Type	Voltage Rating	Dielectric Material	Mating Cycles	Housing Color	Backshell Material, Plating	Insert Material	Color	Shell Material	Features	Shielding	Shell Finish	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Current Rating (Amps)	Orientation	Contact Finish - Mating	Primary Material	Shell Size - Insert	Number of Positions	Accessory Type	For Use With/Related Products
LEMO FFS.00.161.MN
LEMO FFS.00.250.NTCE31	Brass	-55 °C	260 ░C	50 Ohms	Brass	188A, 316, RG-174	NIM-CAMAC CD/N 549	Free Hanging (In-Line)	Crimp	Gold	IP50	Crimp	Male Pin, Plug	1	Nickel	Push-Pull	700 VDC	Polytetrafluoroethylene (PTFE)	5000	Silver
LEMO FFS.00.250.NTCE32	Brass	-55 °C	260 ░C	50 Ohms	Brass		NIM-CAMAC CD/N 549	Free Hanging (In-Line)	Crimp	Gold	IP50	Crimp	Male Pin, Plug		Nickel	Push-Pull	700 VDC	Polytetrafluoroethylene (PTFE)	5000	Silver
LEMO FFS.00.113.CTCE31		-55 °C	250 °C					Free Hanging (In-Line)			IP50		Male Pins, Plug			Push-Pull					Brass, Chrome	Polytetrafluoroethylene (PTFE)	Silver	Brass	Backshell	Shielded	Chrome	Brass	1 µm	39.4 µin	Crimp	8 A	S	Gold	Metal	113	1
LEMO FFS.00.250.CTCE44	Brass			50 Ohms			Coaxial	Free Hanging (In-Line)	Crimp	Gold	IP50	Crimp	Male Pin, Plug	1	Chrome	Push-Pull		Polytetrafluoroethylene (PTFE)	5000	Silver
LEMO FFS.00.250.CTCE56	Brass	-55 °C	260 ░C	50 Ohms	Brass	RG-142B	NIM-CAMAC CD/N 549	Free Hanging (In-Line)	Crimp	Gold	IP50	Crimp	Male Pin, Plug		Chrome	Push-Pull	700 VDC	Polytetrafluoroethylene (PTFE)	5000	Silver
LEMO FFS.00.160.DN																																						Crimp Ferrule	00 Series Connector
LEMO FFS.00.162.DN																																						Crimp Ferrule	00 Series Connector
LEMO FFS.00.250.CTAE24	Brass	-55 °C	260 ░C	50 Ohms	Brass	196A, RG-178B	NIM-CAMAC CD/N 549	Free Hanging (In-Line)	Crimp	Gold	IP50	Crimp	Male Pin, Plug	1	Chrome	Push-Pull	700 VDC	Polytetrafluoroethylene (PTFE)	5000	Silver
LEMO FFS.00.250.CTCE52	Brass	-55 °C	260 ░C	50 Ohms	Brass	RG-58	NIM-CAMAC CD/N 549	Free Hanging (In-Line)	Crimp	Gold	IP50	Crimp	Male Pin, Plug	1	Chrome	Push-Pull	700 VDC	Polytetrafluoroethylene (PTFE)	5000	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.05
		10	$ 17.56
		25	$ 16.80
		50	$ 16.26
		100	$ 15.71
		250	$ 14.85
		500	$ 14.41

Description

General part information

FFS.00 Series

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
