M1WXK-2436R
Active3M
IDC CABLE - MPL24K/MC24M/X
Deep-Dive with AI
Search across all available documentation for this part.
M1WXK-2436R
Active3M
IDC CABLE - MPL24K/MC24M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1WXK-2436R | M1WXK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Plug to Cable | Plug to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Flange, Polarizing Key | Flange, Polarizing Key |
| Length [x] | 3 ft | 3 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 mm |
| Number of Positions | 24 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1WXK Series
IDC CABLE - MPL24K/MC24M/X
| Part | Length [x] | Length [x] | Features | Pitch - Cable | Pitch - Cable | Pitch - Connector | Pitch - Connector | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Number of Rows | Connector Type | Color | Contact Finish | Shielding | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3 ft | 914.4 mm | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Multiple, Ribbon | Gold | Unshielded | 24 | ||
3 ft | 914.4 mm | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Gold | Unshielded | 60 | |||
3 ft | 914.4 mm | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Gold | Unshielded | 34 | |||
3.34 ft | 1.02 m | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Multiple, Twisted Pair (Flat) | Gold | Unshielded | 50 | ||
3 ft | 914.4 mm | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Gold | Unshielded | 50 | |||
3 ft | 914.4 mm | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Multiple, Ribbon | Gold | Unshielded | 40 | ||
3 ft | 914.4 mm | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Multiple, Ribbon | Gold | Unshielded | 16 | ||
3.34 ft | 1.02 m | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Multiple, Twisted Pair (Flat) | Gold | Unshielded | 16 | ||
3.34 ft | 1.02 m | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Multiple, Twisted Pair (Flat) | Gold | Unshielded | 10 | ||
3 ft | 914.4 mm | Flange, Polarizing Key | 0.05 " | 1.27 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | IDC | 2 | Plug to Cable | Multiple, Ribbon | Gold | Unshielded | 36 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.48 | |
| 10 | $ 13.72 | |||
| 25 | $ 13.19 | |||
| 50 | $ 12.66 | |||
| 100 | $ 11.96 | |||
| 250 | $ 10.90 | |||
| 500 | $ 10.20 | |||
| 1000 | $ 9.36 | |||
Description
General part information
M1WXK Series

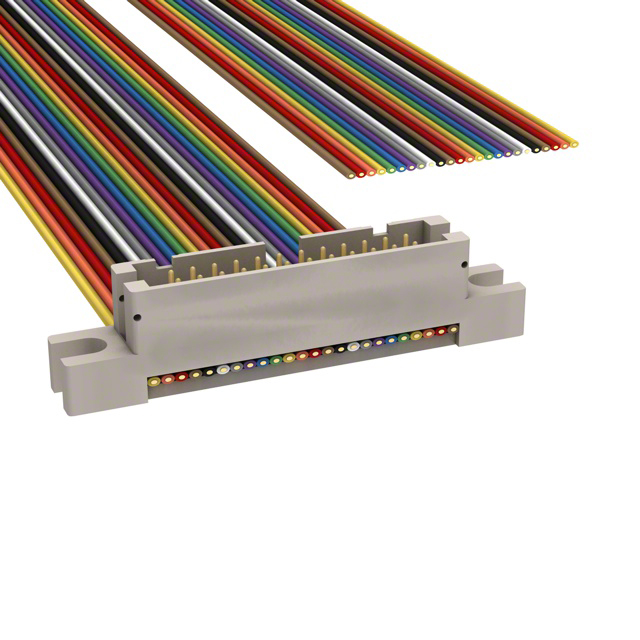

24 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
