M1WXK-1640K

Active

IDC CABLE - MPL16K/MC16F/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide 1700 Series +1

M1WXK-1640K

Active

IDC CABLE - MPL16K/MC16F/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide 1700 Series +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.37
		10	$ 14.14
		25	$ 12.79
		50	$ 11.88
		100	$ 11.05
		250	$ 10.08
		500	$ 9.42
		1000	$ 8.83

Description

General part information

M1WXK Series

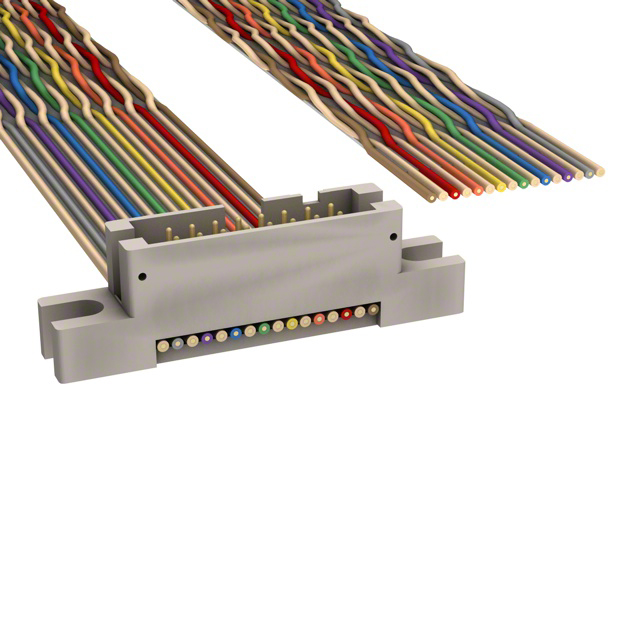

16 Position Cable Assembly Rectangular Plug to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

1700 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1WXK-1640K	M1WXK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Plug to Cable	Plug to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Flange, Polarizing Key	Flange, Polarizing Key
Length [x]	1.02 m	1.02 - 914.4 mm
Length [x]	3.34 ft	3 - 3.34 ft
Number of Positions	16	16
Number of Positions	-	10 - 64
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1WXK Series

IDC CABLE - MPL24K/MC24M/X

Part	Length [x]	Length [x]	Features	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Rows	Connector Type	Color	Contact Finish	Shielding	Number of Positions	Number of Positions
3M M1WXK-2436R	3 ft	914.4 mm	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable	Multiple, Ribbon	Gold	Unshielded	24
3M M1WXK-6036J	3 ft	914.4 mm	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable		Gold	Unshielded	60
3M M1WXK-3436J	3 ft	914.4 mm	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable		Gold	Unshielded	34
3M M1WXK-5040K	3.34 ft	1.02 m	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable	Multiple, Twisted Pair (Flat)	Gold	Unshielded	50
3M M1WXK-5036J	3 ft	914.4 mm	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable		Gold	Unshielded	50
3M M1WXK-4036R	3 ft	914.4 mm	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable	Multiple, Ribbon	Gold	Unshielded	40
3M M1WXK-1636R	3 ft	914.4 mm	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable	Multiple, Ribbon	Gold	Unshielded		16
3M M1WXK-1640K	3.34 ft	1.02 m	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable	Multiple, Twisted Pair (Flat)	Gold	Unshielded		16
3M M1WXK-1040K	3.34 ft	1.02 m	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable	Multiple, Twisted Pair (Flat)	Gold	Unshielded	10
3M M1WXK-3636R	3 ft	914.4 mm	Flange, Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	0.76 Ám	30 Áin	IDC	2	Plug to Cable	Multiple, Ribbon	Gold	Unshielded	36
