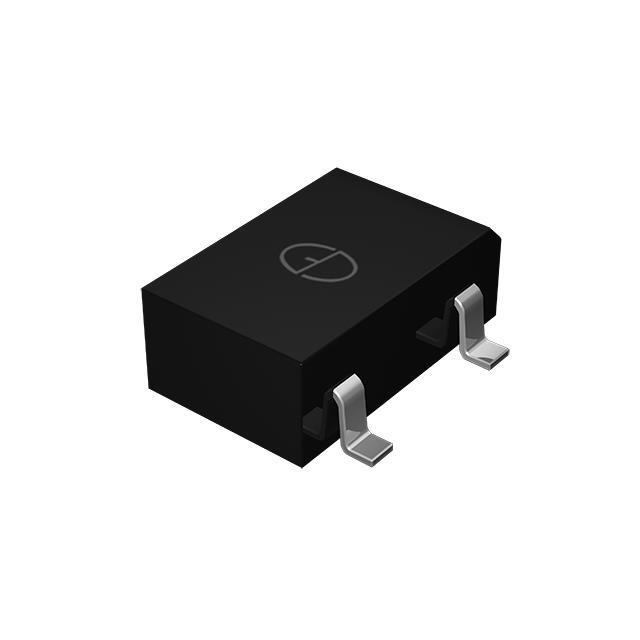

DF1510S

Active

Good-Ark Semiconductor

BRIDGE RECTIFIER, GENERAL PURPOS

Search across all available documentation for this part.

Active

Good-Ark Semiconductor

BRIDGE RECTIFIER, GENERAL PURPOS

Technical Specifications

Parameters and characteristics for this part

Specification	DF1510S

Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	DFS
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

BRIDGE RECTIFIER, GENERAL PURPOS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Technology	Voltage - Peak Reverse (Max) [Max]	Diode Type	Voltage - Forward (Vf) (Max) @ If	Package / Case	Supplier Device Package	Mounting Type
Good-Ark Semiconductor DF1510S	-55 °C	150 °C	1.5 A	5 µA	Standard	1000 V	Single Phase	1.1 V	4-SMD, Gull Wing	DFS	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Surface Mount DFS
