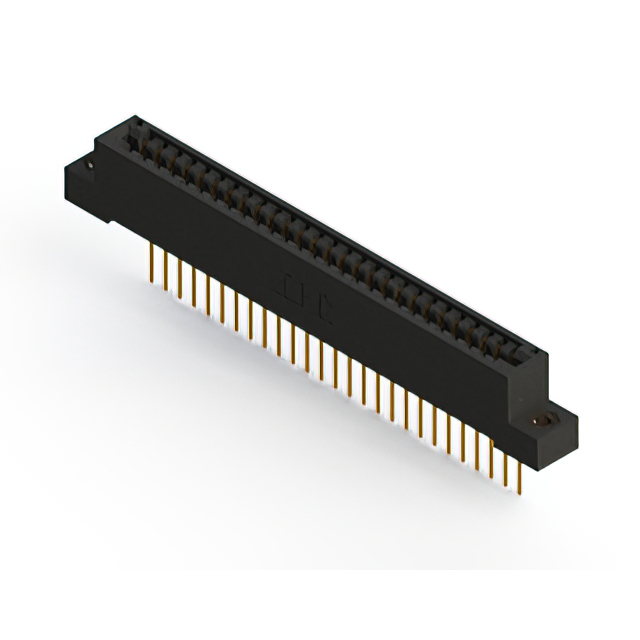

396-027-540-107
ActiveEDAC Inc.
CONN EDGE SGL FMALE 27POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-027-540-107
ActiveEDAC Inc.
CONN EDGE SGL FMALE 27POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-027-540-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 27 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
396-027 Series
| Part | Read Out | Termination | Color | Card Type | Termination Rows | Contact Finish | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Gender | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Solder | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | |
EDAC Inc. | Single | Solder | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | Card Guides | ||
EDAC Inc. | Single | Wire Wrap | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | |
EDAC Inc. | Single | Wire Wrap | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 4-40 Threaded Insert Top Mount Opening | Through Hole | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | |||
EDAC Inc. | Single | Solder Wire Wrap | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole Right Angle | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | |
EDAC Inc. | Single | Solder | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | Card Guides | ||
EDAC Inc. | Single | Wire Wrap | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | |||
EDAC Inc. | Single | Solder Wire Wrap | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Through Hole Right Angle | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | |
EDAC Inc. | Single | Solder Wire Wrap | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole Right Angle | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | Card Guides | ||
EDAC Inc. | Single | Solder Wire Wrap | Black | Non Specified - Single Edge | 1 | Gold | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 27 | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Female | 27 | 4-40 Threaded Insert Top Mount Opening | Through Hole Right Angle | 1 | -40 °C | 105 ░C | 0.125 in | 3.18 mm | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
396-027 Series
27 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
