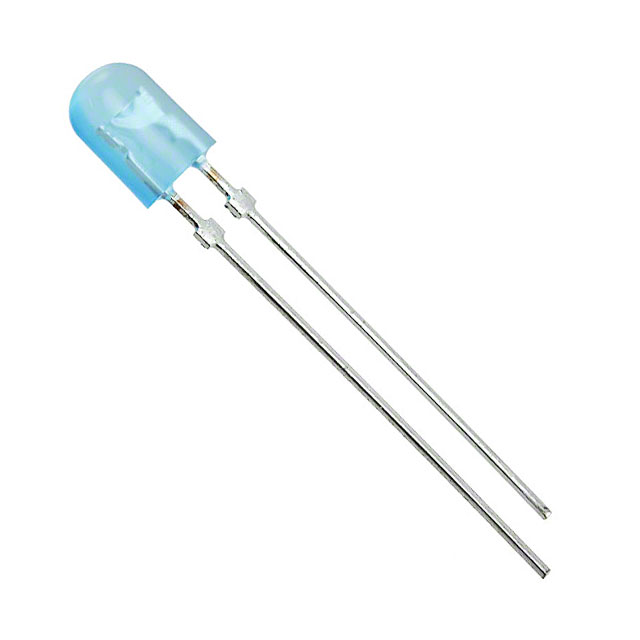

C5SMF-BJF-CR0U0351

Active

Cree LED

LED BLUE CLEAR 5MM OVAL T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C5SMF-BJF-CR0U0351

Active

Cree LED

LED BLUE CLEAR 5MM OVAL T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.23
		10	$ 0.21
		100	$ 0.20
		1000	$ 0.18
		50000	$ 0.16

Description

General part information

C5SMF Series

Blue 470nm LED Indication - Discrete 3.4V Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C5SMF-BJF-CR0U0351	C5SMF Series

Color	Blue	Blue, Red, Amber, Green
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	10.95 mm	7 - 10.95 mm
Lens Color	Blue	Blue, Red, Amber, Green
Lens Size [x]	5.1 mm	5.1 mm
Lens Size [y]	3.7 mm	3.7 mm
Lens Style	Oval with Domed Top	Oval with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	1340 mcd	742 - 5605 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	OVAL	OVAL
Supplier Device Package	-	5 mm
Supplier Device Package [custom]	5 mm	5 mm
Viewing Angle [x]	100 °	100 °
Viewing Angle [y]	40 °	40 °
Voltage - Forward (Vf) (Typ)	3.4 V	2.1 - 3.4 V
Wavelength - Dominant	470 nm	465 - 621 nm
Wavelength - Dominant	-	527 nm
Wavelength - Peak	-	458 nm

C5SMF Series

LED BLUE CLEAR 5MM OVAL T/H

...

Part	Current - Test	Lens Transparency	Wavelength - Dominant	Lens Style	Supplier Device Package	Supplier Device Package [custom]	Height (Max) [Max] [z]	Lens Size [x]	Lens Size [y]	Color	Lens Color	Voltage - Forward (Vf) (Typ)	Package / Case	Configuration	Millicandela Rating	Viewing Angle [y]	Viewing Angle [x]	Mounting Type	Supplier Device Package [diameter]
Cree LED C5SMF-BJN-CT14Q4T1	20 mA	Clear	470 nm	Oval with Domed Top	OVAL	5 mm	7 mm	5.1 mm	3.7 mm	Blue	Blue	3.4 V	Radial	Standard	1462 mcd	40 °	100 °	Through Hole
Cree LED C5SMF-BJE-CT34Q3T1	20 mA		465 nm	Oval with Domed Top	OVAL	5 mm	7 mm	5.1 mm	3.7 mm	Blue		3.4 V	Radial	Standard	1720 mcd	40 °	100 °	Through Hole
Cree LED C5SMF-BJS-CT34Q3T1	20 mA		465 nm	Oval with Domed Top	OVAL	5 mm	10.95 mm	5.1 mm	3.7 mm	Blue		3.4 V	Radial	Standard	1720 mcd	40 °	100 °	Through Hole
Cree LED C5SMF-BJF-CT14Q3T1	20 mA	Clear	470 nm	Oval with Domed Top	OVAL	5 mm	10.95 mm	5.1 mm	3.7 mm	Blue	Blue	3.4 V	Radial	Standard	1462 mcd	40 °	100 °	Through Hole
Cree LED C5SMF-RJE-CV14QBB2	20 mA	Clear	621 nm	Oval with Domed Top	OVAL	5 mm	8.5 mm	5.1 mm	3.7 mm	Red	Red	2.1 V	Radial	Standard	1100 mcd	40 °	100 °	Through Hole
Cree LED C5SMF-BJN-CR24Q4T1	20 mA	Clear	470 nm	Oval with Domed Top	OVAL	5 mm	7 mm	5.1 mm	3.7 mm	Blue	Blue	3.4 V	Radial	Standard	811 mcd	40 °	100 °	Through Hole
Cree LED C5SMF-RJS-CV14QBB2	20 mA	Clear	621 nm	Oval with Domed Top			10.95 mm	5.1 mm	3.7 mm	Red	Red	2.1 V	Radial	Standard	2200 mcd	40 °	100 °	Through Hole	5 mm
Cree LED C5SMF-BJF-CR0U0351	20 mA	Clear	470 nm	Oval with Domed Top	OVAL	5 mm	10.95 mm	5.1 mm	3.7 mm	Blue	Blue	3.4 V	Radial	Standard	1340 mcd	40 °	100 °	Through Hole
Cree LED C5SMF-BJF-CT14Q4T2	20 mA	Clear	470 nm	Oval with Domed Top	OVAL	5 mm	10.95 mm	5.1 mm	3.7 mm	Blue	Blue	3.4 V	Radial	Standard	1462 mcd	40 °	100 °	Through Hole
Cree LED C5SMF-BJN-CR0U0352	20 mA	Clear	470 nm	Oval with Domed Top	OVAL	5 mm	7 mm	5.1 mm	3.7 mm	Blue	Blue	3.4 V	Radial	Standard	1340 mcd	40 °	100 °	Through Hole
