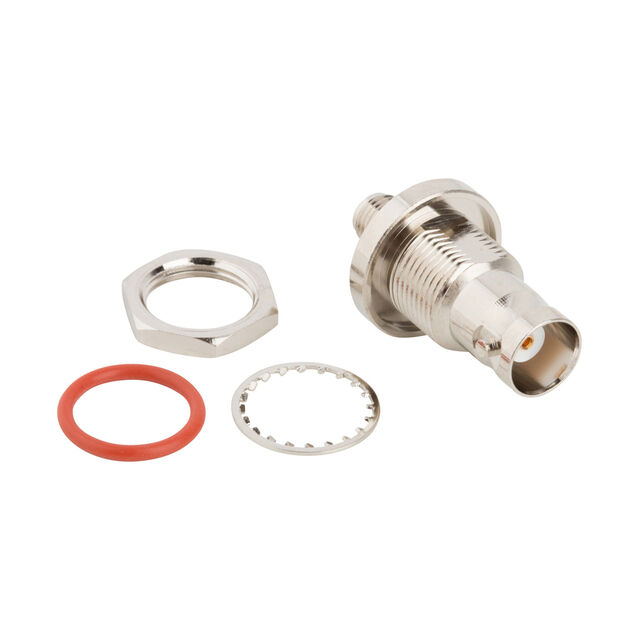

242181-10

Active

Amphenol RF

ADAPTER, BNC JACK TO SMA JACK, B

Search across all available documentation for this part.

Active

Amphenol RF

ADAPTER, BNC JACK TO SMA JACK, B

Technical Specifications

Parameters and characteristics for this part

Specification	242181-10

Adapter Series	BNC to SMA
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Style	Adapter Series	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender	Body Finish	Mounting Feature	Convert To (Adapter End)	Center Contact Material	Fastening Type	Adapter Type	Center Contact Plating	Convert From (Adapter End)	Impedance	Conversion Type	Body Material	Dielectric Material
Amphenol RF 242181-10	4 GHz	Straight	BNC to SMA	-65 ░C	165 °C	Female to Female	Nickel	Bulkhead	BNC Jack Female Socket	Beryllium Copper	Bayonet Lock Threaded	Jack to Jack	Gold	Female Socket SMA Jack	50 Ohms	Between Series	Brass	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
