TB62262FTAG,EL
ActiveToshiba Semiconductor and Storage

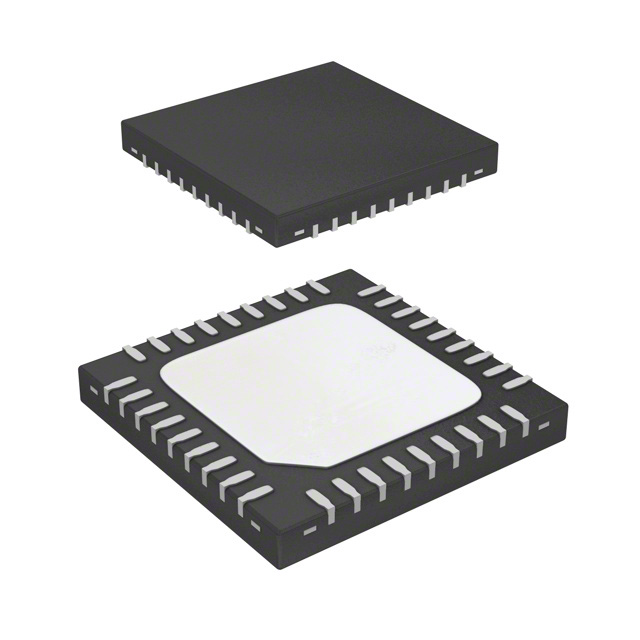

IC MOTOR DRIVER BIPOLAR 36WQFN
Deep-Dive with AI
Search across all available documentation for this part.
TB62262FTAG,EL
ActiveToshiba Semiconductor and Storage
IC MOTOR DRIVER BIPOLAR 36WQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TB62262FTAG,EL |
|---|---|
| Applications | Appliance |
| Current - Output | 800 mA |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 36-WFQFN Exposed Pad |
| Step Resolution | 1/4, 1/2, 1 |
| Supplier Device Package | 36-WQFN (6x6) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 35 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.88 | |
Description
General part information
TB62262 Series
Bipolar Motor Driver Power MOSFET PWM 36-WQFN (6x6)
