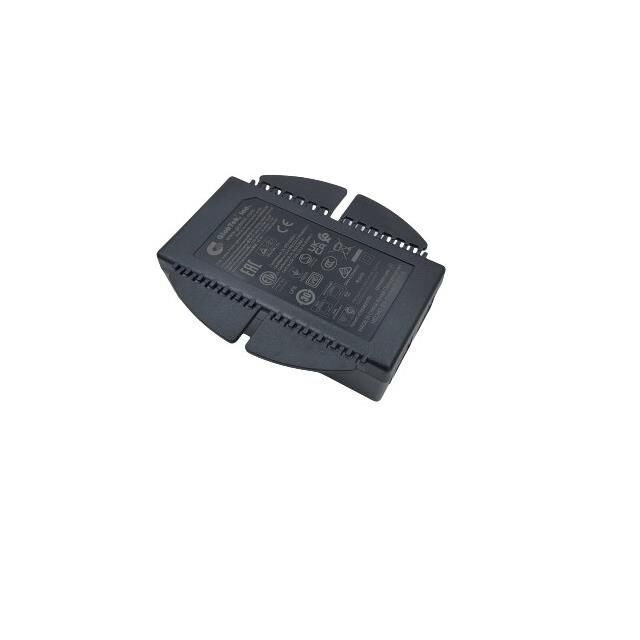

GT-96300-3656-T2APOE
ActiveGlobTek, Inc.
POE INJECTOR 56V 36W DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GT-96300-3656-T2APOE
ActiveGlobTek, Inc.
POE INJECTOR 56V 36W DESKTOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GT-96300-3656-T2APOE |
|---|---|
| Approval Agency | VCCI, ETL, UKRSepro, CE, PSE, EAC, CCC, CB, S-Mark, RCM |
| Compliance | IEEE802.3at |
| Current - Output | 640 mA |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | Level VI |
| Features | SCP, OCP, OVP |
| Input Connector | IEC 320-C8 |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 36 W |
| Size / Dimension [x] | 107 mm |
| Size / Dimension [x] | 4.21 " |
| Size / Dimension [y] | 55 mm |
| Size / Dimension [y] | 2.17 in |
| Size / Dimension [z] | 1.41 in |
| Size / Dimension [z] | 35.7 mm |
| Standard Number | 60335-1, 60950-1, 62368-1 |
| Type | Midspan Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 56 V |
GT-96300 Series
| Part | Number of Ports | Data Rate | Efficiency | Current - Output | Approval Agency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Features | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Type | Voltage - Output | Output Connector | Power (Watts) - Per Port | Voltage - Input [Min] | Voltage - Input [Max] | Compliance | Input Connector | Standard Number | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GlobTek, Inc. | 1 | 10 Mbps 100 Mbps 1000 Mbps | Level VI | 1.5 A | CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI | 107 mm | 55 mm | 4.21 " | 1.41 in | 2.17 in | 35.7 mm | OCP OVP SCP | Wall Mount | -10 °C | 40 °C | Passive Injector | 24 V | RJ45 (Data Power) | 36 W | 90 VAC | 264 VAC | IEEE802.3at | IEC 320-C14 | 60335-1 60950-1 62368-1 | ||
GlobTek, Inc. | 1 | 10 Mbps 100 Mbps 1000 Mbps | Level VI | 640 mA | CB CCC CE EAC ETL PSE S-Mark UKRSepro VCCI | 104 mm | 4.09 in | 1.58 " | 2.13 in | OCP OVP SCP | Wall Mount | -10 °C | 40 °C | Midspan Injector | 56 V | RJ45 (Data Power) | 36 W | 90 VAC | 264 VAC | IEEE802.3at | IEC 320-C8 (Power) RJ45 (Data) | 60335-1 60950-1 62368-1 | 54 mm | 40.2 mm | ||
GlobTek, Inc. | 1 | 10 Mbps 100 Mbps 1000 Mbps | Level VI | CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI | 107 mm | 40 mm | 4.21 " | 1.41 in | 1.57 " | 35.7 mm | OCP OVP SCP | Desktop | -10 °C | 40 °C | Midspan Injector | 48 V | RJ45 (Data Power) | 36 W | 90 VAC | 264 VAC | IEEE802.3af | IEC 320-C14 | 60335-1 60950-1 62368-1 | |||
GlobTek, Inc. | 1 | 10 Mbps 100 Mbps 1000 Mbps | Level VI | 640 mA | CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI | 107 mm | 55 mm | 4.21 " | 1.41 in | 2.17 in | 35.7 mm | OCP OVP SCP | Desktop | -10 °C | 40 °C | Midspan Injector | 56 V | RJ45 (Data Power) | 36 W | 90 VAC | 264 VAC | IEEE802.3at | IEC 320-C8 | 60335-1 60950-1 62368-1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.13 | |
| 10 | $ 28.24 | |||
| 25 | $ 26.83 | |||
| 50 | $ 25.80 | |||
| 100 | $ 24.82 | |||
| 250 | $ 23.58 | |||
Description
General part information
GT-96300 Series
56V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
