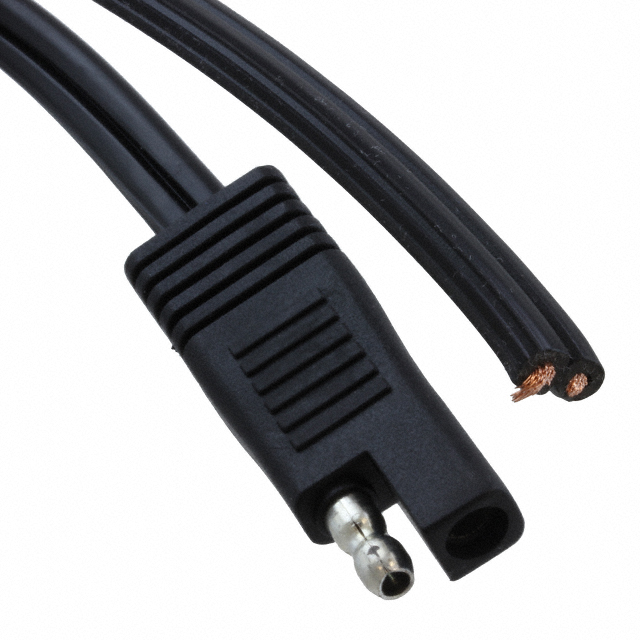

CNC-SAE-16-183-002

Active

CnC Tech, LLC

ADPT CBL SAE TO CBL 16AWG 1.83M

Search across all available documentation for this part.

Active

CnC Tech, LLC

ADPT CBL SAE TO CBL 16AWG 1.83M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CNC-SAE-16-183-002	CNC-SAE Series

Cable Type	-	Flat
Color	Black, Individual (Flat)	Black, Black, Individual (Flat)
Connector Type	SAE Connector to Cable	SAE Connector to Cable, SAE Connector to USB A Female Receptacle
Current Rating (Amps)	-	5 A
Length	6 ft	6 ft
Length	1.83 m	1.83 m
Length	-	1 - 609.6 m
Length	-	2 - 3.28 ft
Number of Positions	2	2
Number of Rows	1	1
Shielding	Unshielded	Unshielded
Specifications	-	1.5 ft
Specifications	-	Cord, PVC
Specifications	-	460 mm
Type	-	Cable, Auto Power Socket to 2 SAE Pin Connector, Cable, Auto Power Plug to 2 SAE Pin Connector
Usage	Extension, Adapter	Extension, Adapter
Voltage - Rated	-	12 VDC

AUTO CBL ASSY W/SKT 12V 5A 1.5'

Part	Type	Current Rating (Amps)	Voltage - Rated	Specifications	Specifications	Specifications	Color	Shielding	Number of Rows	Usage	Connector Type	Number of Positions	Length	Length	Cable Type	Length [x]	Length [x]
CnC Tech, LLC CNC-SAE-16-046-004	Cable, Auto Power Socket to 2 SAE Pin Connector	5 A	12 VDC	1.5 ft	Cord, PVC	460 mm	Black
CnC Tech, LLC CNC-SAE-16-183-002							Black, Individual (Flat)	Unshielded	1	Adapter, Extension	SAE Connector to Cable	2	6 ft	1.83 m
CnC Tech, LLC CNC-SAE-744-00100							Black	Unshielded			SAE Connector to USB A Female Receptacle				Flat	1 m	3.28 ft
CnC Tech, LLC CNC-SAE-16-046-003	Cable, Auto Power Plug to 2 SAE Pin Connector	5 A	12 VDC	1.5 ft	Cord, PVC	460 mm	Black
CnC Tech, LLC CNC-SAE-16-061-002							Black, Individual (Flat)	Unshielded	1	Adapter, Extension	SAE Connector to Cable	2				609.6 mm	2 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Cable Assembly Rectangular SAE Connector to Cable 6.00' (1.83m)
