CNC-SAE-16-046-003

Active

CnC Tech, LLC

AUTO CBL ASSY W/PLUG 12V 5A 1.5'

Search across all available documentation for this part.

Active

CnC Tech, LLC

AUTO CBL ASSY W/PLUG 12V 5A 1.5'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CNC-SAE-16-046-003	CNC-SAE Series

Cable Type	-	Flat
Color	Black	Black, Black, Individual (Flat)
Connector Type	-	SAE Connector to Cable, SAE Connector to USB A Female Receptacle
Current Rating (Amps)	5 A	5 A
Length	-	6 ft
Length	-	1.83 m
Length	-	1 - 609.6 m
Length	-	2 - 3.28 ft
Number of Positions	-	2
Number of Rows	-	1
Shielding	-	Unshielded
Specifications	1.5 ft	1.5 ft
Specifications	Cord, PVC	Cord, PVC
Specifications	460 mm	460 mm
Type	Cable, Auto Power Plug to 2 SAE Pin Connector	Cable, Auto Power Socket to 2 SAE Pin Connector, Cable, Auto Power Plug to 2 SAE Pin Connector
Usage	-	Extension, Adapter
Voltage - Rated	12 VDC	12 VDC

AUTO CBL ASSY W/SKT 12V 5A 1.5'

Part	Type	Current Rating (Amps)	Voltage - Rated	Specifications	Specifications	Specifications	Color	Shielding	Number of Rows	Usage	Connector Type	Number of Positions	Length	Length	Cable Type	Length [x]	Length [x]
CnC Tech, LLC CNC-SAE-16-046-004	Cable, Auto Power Socket to 2 SAE Pin Connector	5 A	12 VDC	1.5 ft	Cord, PVC	460 mm	Black
CnC Tech, LLC CNC-SAE-16-183-002							Black, Individual (Flat)	Unshielded	1	Adapter, Extension	SAE Connector to Cable	2	6 ft	1.83 m
CnC Tech, LLC CNC-SAE-744-00100							Black	Unshielded			SAE Connector to USB A Female Receptacle				Flat	1 m	3.28 ft
CnC Tech, LLC CNC-SAE-16-046-003	Cable, Auto Power Plug to 2 SAE Pin Connector	5 A	12 VDC	1.5 ft	Cord, PVC	460 mm	Black
CnC Tech, LLC CNC-SAE-16-061-002							Black, Individual (Flat)	Unshielded	1	Adapter, Extension	SAE Connector to Cable	2				609.6 mm	2 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

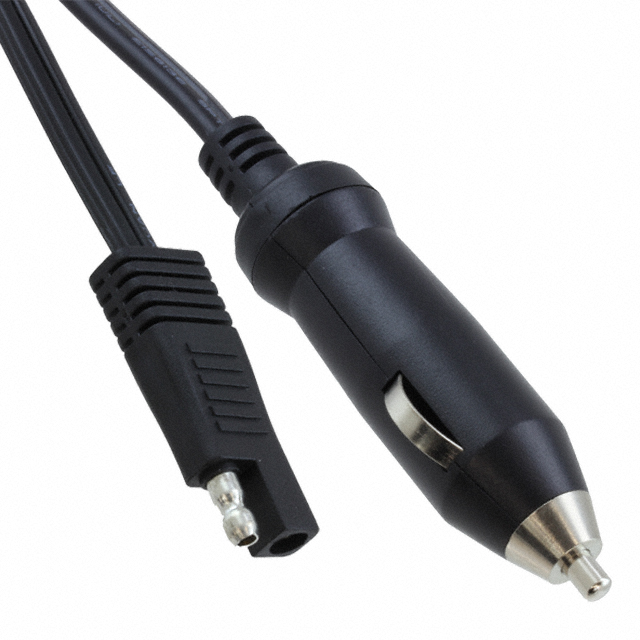

Cable, Auto Power Plug to 2 SAE Pin Connector Cigarette Lighter Assembly 12 V 5 A 1.5' (460.0mm) Cord, PVC Black
