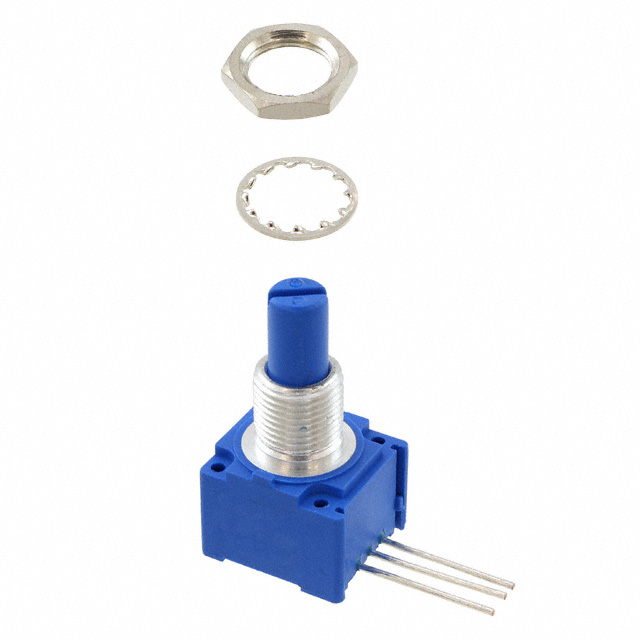

96A1A-B24-B15L
ActiveBourns Inc.
PANEL CONTROL - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
96A1A-B24-B15L
ActiveBourns Inc.
PANEL CONTROL - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 96A1A-B24-B15L |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Diameter [diameter] | 0.25 in |
| Actuator Length [z] | 19.05 mm |
| Actuator Length [z] | 0.75 in |
| Actuator Type | Slotted |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Features | Sealed |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 1 W |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Rotation | 300 ░ |
| Size - Body [x] | 0.687 in |
| Size - Body [x] | 17.45 mm |
| Size - Body [y] | 0.625 in |
| Size - Body [y] | 15.88 mm |
| Taper | Linear |
| Temperature Coefficient | 1000 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
96A1A Series
| Part | Features | Number of Turns | Built in Switch | Taper | Temperature Coefficient | Bushing Thread | Number of Gangs | Tolerance | Power (Watts) | Actuator Type | Termination Style | Rotation | Adjustment Type | Resistance (Ohms) | Actuator Length [z] | Actuator Length [z] | Resistive Material | Size - Body [x] | Size - Body [y] | Size - Body [x] | Size - Body [y] | Actuator Diameter | Actuator Diameter [diameter] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Sealed | 1 | Linear | 1000 ppm/°C | 3/8-32 | 1 | 20 % | 1 W | Slotted | PC Pins | 300 ░ | Side Adjustment | 100 kOhms | 22.23 mm | 0.875 in | Conductive Plastic | 0.687 in | 0.625 in | 17.45 mm | 15.88 mm | 6.35 mm | 0.25 in | ||
Bourns Inc. | Sealed | 1 | Linear | 1000 ppm/°C | 3/8-32 | 1 | 20 % | 1 W | Slotted | PC Pins | 300 ░ | Side Adjustment | 19.05 mm | 0.75 in | Conductive Plastic | 0.687 in | 0.625 in | 17.45 mm | 15.88 mm | 6.35 mm | 0.25 in | 10k | ||
Bourns Inc. | Sealed | 1 | Linear | 1000 ppm/°C | 3/8-32 | 1 | 20 % | 1 W | Flatted | PC Pins | 300 ░ | Side Adjustment | 19.05 mm | 0.75 in | Conductive Plastic | 0.687 in | 0.625 in | 17.45 mm | 15.88 mm | 6.35 mm | 0.25 in | 10k | ||
Bourns Inc. | Sealed | 1 | Linear | 150 ppm/°C | 3/8-32 | 1 | 10 % | 2 W | Slotted | PC Pins | 300 ░ | Side Adjustment | 100 kOhms | 22.23 mm | 0.875 in | Cermet | 0.687 in | 0.625 in | 17.45 mm | 15.88 mm | 6.35 mm | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
96A1A Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 1W PC Pins
