US2JA

Active

ON Semiconductor

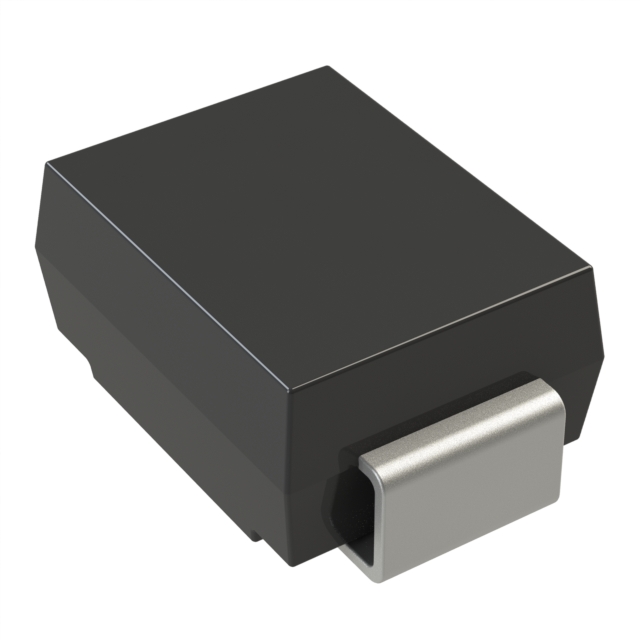

RECTIFIER, SINGLE, 1.5A, 600V, DO-214AC

Search across all available documentation for this part.

Active

ON Semiconductor

RECTIFIER, SINGLE, 1.5A, 600V, DO-214AC

Technical Specifications

Parameters and characteristics for this part

Specification	US2JA

Capacitance @ Vr, F	30 pF
Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	5 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-214AC, SMA
Qualification	AEC-Q101
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AC (SMA)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Super Fast Surface Mount Rectifiers

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io)	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Reverse Recovery Time (trr)	Capacitance @ Vr, F	Grade	Technology
ON Semiconductor US2JA	1.7 V	Surface Mount	5 µA	DO-214AC (SMA)	1.5 A	200 mA, 500 ns	600 V	AEC-Q101	150 °C	-55 °C	DO-214AC, SMA	75 ns	30 pF	Automotive	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Super Fast Surface Mount Rectifiers
