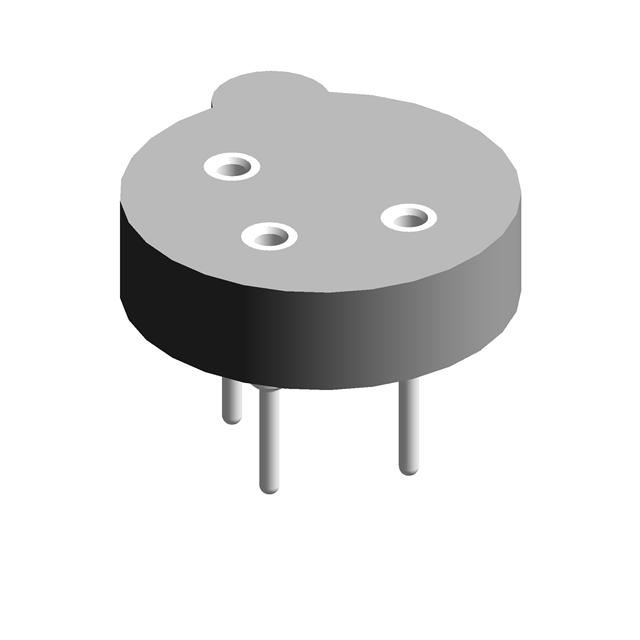

917-87-103-41-005101

Active

Preci-Dip

CONN TRANSIST TO-5 3POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

917-87-103-41-005101

Active

Preci-Dip

CONN TRANSIST TO-5 3POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2400	$ 0.44

Description

General part information

917-87 Series

3 (Round) Pos Transistor, TO-5 Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	917-87-103-41-005101	917-87 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	3	3 - 10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Termination	Solder	Solder
Termination Post Length	3.18 mm	1.4 - 3.18 mm
Termination Post Length	0.125 in	0.055 - 0.125 in
Type	Transistor, TO-5	Transistor, TO-5

917-87 Series

CONN TRANSIST TO-5 10POS GOLD

Part	Termination Post Length	Termination Post Length	Termination	Contact Finish - Mating	Mounting Type	Contact Resistance	Contact Finish Thickness - Mating	Contact Material - Post [custom]	Contact Material - Mating	Type	Contact Finish - Post	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Number of Positions or Pins (Grid)
Preci-Dip 917-87-210-41-053101	0.055 in	1.4 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10
Preci-Dip 917-87-210-41-005101	0.125 in	3.18 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	10
Preci-Dip 917-87-208-41-005101	0.125 in	3.18 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	8
Preci-Dip 917-87-108-41-005101	0.125 in	3.18 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	8
Preci-Dip 917-87-208-41-053101	0.055 in	1.4 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	8
Preci-Dip 917-87-103-41-005101	0.125 in	3.18 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	3
Preci-Dip 917-87-108-41-053101	0.055 in	1.4 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	8
Preci-Dip 917-87-104-41-053101	0.055 in	1.4 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	4
Preci-Dip 917-87-104-41-005101	0.125 in	3.18 mm	Solder	Gold	Through Hole	10 mOhm	Flash	Brass	Beryllium Copper	Transistor, TO-5	Tin	UL94 V-0	1 A	-55 °C	125 °C	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	4
