FS3L400R10W3S7FB11BPSA1

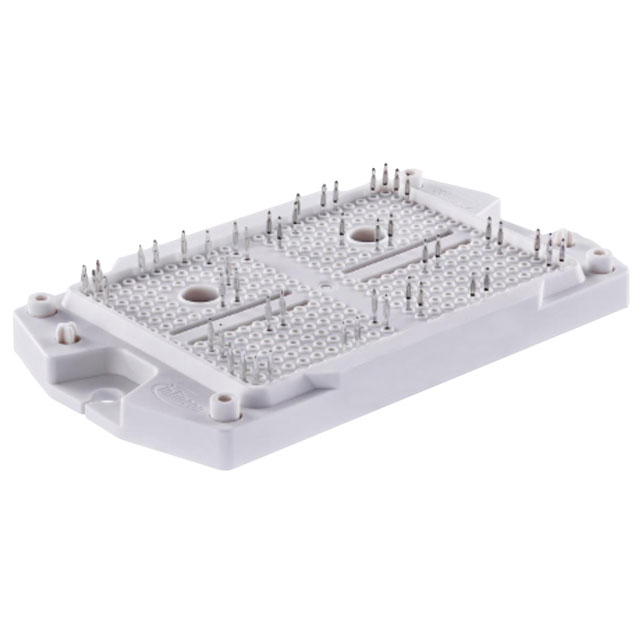

ActiveTHE FS3L400R10W3S7F_B11 IS A 3-LEVEL EASYPACK™ MODULE - EASY3B MODULE WITH TRENCHSTOP™ IGBT7 AND COOLSIC™ SCHOTTKY DIODE UP TO 950 V AND 400 A
Deep-Dive with AI
Search across all available documentation for this part.
FS3L400R10W3S7FB11BPSA1
ActiveTHE FS3L400R10W3S7F_B11 IS A 3-LEVEL EASYPACK™ MODULE - EASY3B MODULE WITH TRENCHSTOP™ IGBT7 AND COOLSIC™ SCHOTTKY DIODE UP TO 950 V AND 400 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FS3L400R10W3S7FB11BPSA1 |
|---|---|
| Configuration | Three Level Inverter |
| Current - Collector (Ic) (Max) | 120 A |
| Current - Collector Cutoff (Max) [Max] | 26 µA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 12.6 nF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | True |
| Operating Temperature [Max] | 175 °C |
| Operating Temperature [Min] | -40 C |
| Package / Case | Module |
| Supplier Device Package | AG-EASY3B |
| Vce(on) (Max) @ Vge, Ic | 1.48 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 950 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 182.55 | |
| 16 | $ 168.35 | |||
Description
General part information
FS3L400R10 Series
EasyPACK™950 V 400 A Easy3B module withTRENCHSTOP™ IGBT7andCoolSiC™Schottky diode andPressFIT/ NTC. A simple solution with three-level boost topology with 3 MPPTs, higher input current (45 A) per MPPT and 114 kW output power for 1500 V DC booster stage.
