AM75QB-11012SA30JZ-B

Active

aimtec

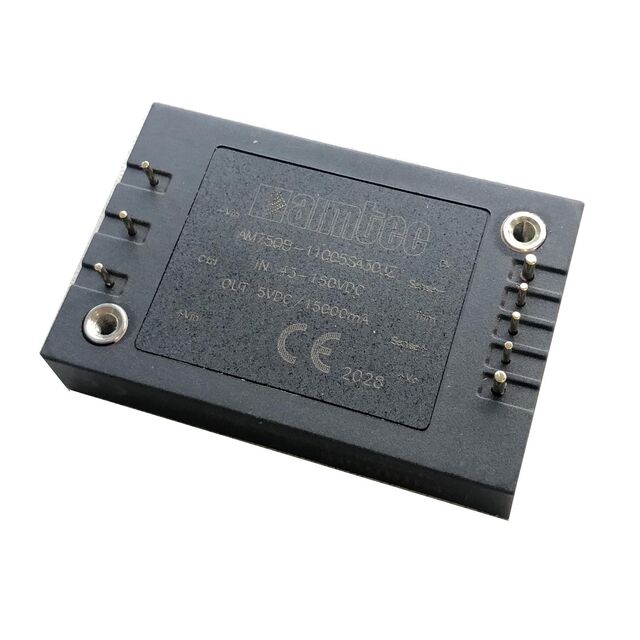

DC DC CONVERTER 12V 75W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 12V 75W

Technical Specifications

Parameters and characteristics for this part

Specification	AM75QB-11012SA30JZ-B

Applications	Industrial, Railway
Current - Output (Max) [Max]	6.25 A
Efficiency	89 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	75 W
Size / Dimension [x]	2.39 "
Size / Dimension [x]	60.8 mm
Size / Dimension [y]	1.54 "
Size / Dimension [y]	39.2 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	50155
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Voltage - Input (Min) [Min]	Supplier Device Package	Number of Outputs	Voltage - Output 1	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]	Package / Case	Approval Agency	Applications	Mounting Type	Current - Output (Max) [Max]	Efficiency	Type	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Standard Number
aimtec AM75QB-4812SH22-NZ	18 V	Quarter Brick	1	12 V	Remote On/Off	85 °C	-40 °C	2250 VDC	75 V	Quarter Brick	CE	ITE (Commercial)	Through Hole	6.25 A	92 %	Isolated Module	75 W	0.5 in	40.2 mm	1.58 in	2.43 in	12.7 mm	61.8 mm
aimtec AM75QB-11024SA30JZ-B	43 V	Quarter Brick	1	24 V	Adjustable Output Remote On/Off Remote Sense	105 ░C	-40 °C	3000 V	160 V	Quarter Brick		Industrial Railway	Through Hole	3.12 A	91 %	Isolated Module	75 W	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	50155
aimtec AM75QB-11015SA30JZ-B	43 V	Quarter Brick	1	15 V	Adjustable Output Remote On/Off Remote Sense	105 ░C	-40 °C	3000 V	160 V	Quarter Brick		Industrial Railway	Through Hole	5 A	89 %	Isolated Module	75 W	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm
aimtec AM75QB-11012SA30JZ-B	43 V	Quarter Brick	1	12 V	Adjustable Output Remote On/Off Remote Sense	105 ░C	-40 °C	3000 V	160 V	Quarter Brick		Industrial Railway	Through Hole	6.25 A	89 %	Isolated Module	75 W	0.5 in	39.2 mm	1.54 "	2.39 "	12.7 mm	60.8 mm	50155

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 6.25A 43V - 160V Input
