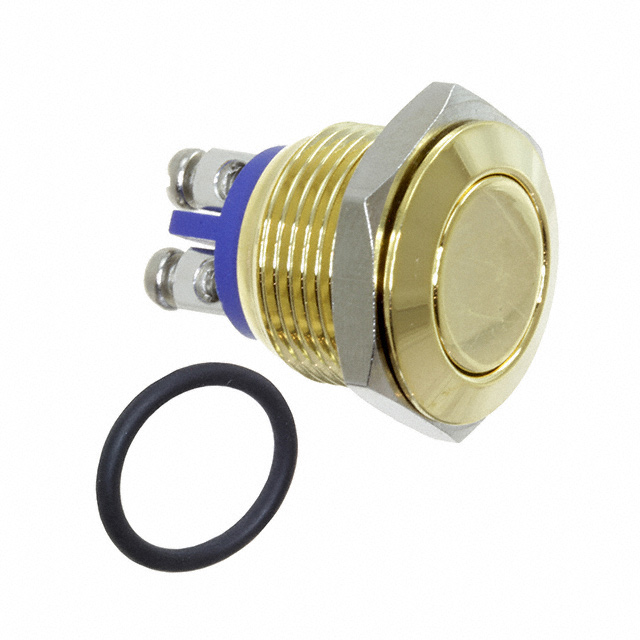

PV2F640GG

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Deep-Dive with AI

Search across all available documentation for this part.

PV2F640GG

Active

E-Switch

SWITCH PUSHBUTTON SPST-NO 2A 48V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV2F640GG

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Gold
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Anti-Vandal
Voltage Rating - DC	48 V

PV2F640 Series

Part	Switch Function	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mechanical Life	Actuator Type	Termination Style	Voltage Rating - DC	Type	Ingress Protection	Panel Cutout Dimensions [diameter]	Mounting Type	Color - Actuator/Cap	Circuit	Actuator Marking
E-Switch PV2F640BB	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Flush Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Silver	SPST-NO	No Marking
E-Switch PV2H640BB	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Silver	SPST-NO	No Marking
E-Switch PV2H640GG	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Gold	SPST-NO	No Marking
E-Switch PV2F640NN	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Flush Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Silver	SPST-NO	No Marking
E-Switch PV2S64011	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Domed Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Black	SPST-NO	No Marking
E-Switch PV2H640NN	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Silver	SPST-NO	No Marking
E-Switch PV2H240SS-M01	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Round	Solder Lug	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Silver	SPST-NO
E-Switch PV2F640GG	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Flush Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Gold	SPST-NO	No Marking
E-Switch PV2F640SS	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Flush Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Silver	SPST-NO	No Marking
E-Switch PV2H640SS	Off-Mom	200000 Cycles	55 °C	-20 C	2 A	1000000 Cycles	Button Round	Screw Terminal	48 V	Anti-Vandal	IP65 - Dust Tight Water Resistant	16 mm	Panel Mount Front	Silver	SPST-NO	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.89
		10	$ 8.53
		40	$ 7.81
		80	$ 7.47
		120	$ 7.27
		280	$ 6.89
		520	$ 6.62
		1000	$ 6.34

Description

General part information

PV2F640 Series

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front

Documents

Technical documentation and resources

No documents available
