Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.01 | |
General part information

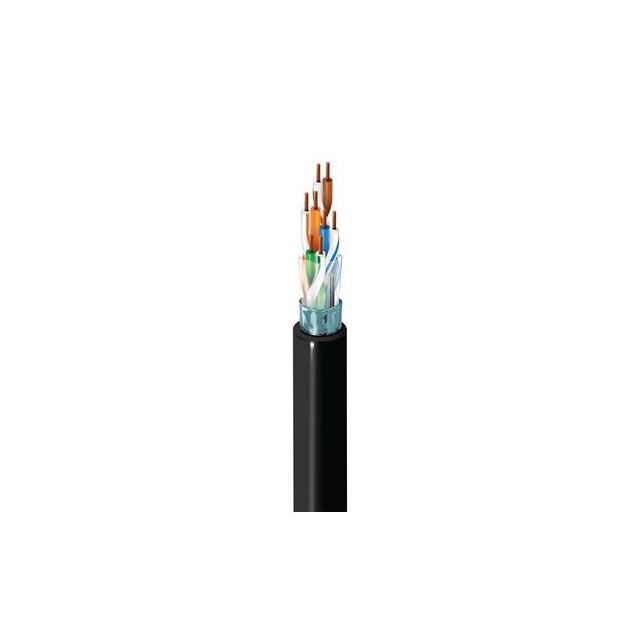

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG Foil 1000.0' (304.8m)
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1213F 0101000 | 1213F Series |
|---|---|---|
| Cable Type | Multi-Pair, Cat5e | Multi-Pair, Cat5e |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Bare | Copper, Bare |
| Conductor Strand | Solid | Solid |
| Features | Drain Wire | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 5.97 mm | 5.97 mm |
| Jacket (Insulation) Diameter [diameter] | 0.235 in | 0.235 in |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket Color | Black | Orange, Black, Blue |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | 500 ' |
| Length | - | 152.4 m |
| Number of Conductors | 8 | 8 |
| Ratings | UL Style CMP | UL Style CMP |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Polyester, Aluminum | Polyester, Aluminum |
| Shield Type | Foil | Foil |
| Usage | Video, Ethernet, LAN | Video, Ethernet, LAN |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
CABLE CAT5E 8COND 24AWG
| Part | Conductor Material | Cable Type | Shield Type | Conductor Insulation | Wire Gauge | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Voltage | Shield Material | Features | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Usage | Length | Length | Conductor Strand | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. 1213F 003A1000 | Copper, Bare | Multi-Pair, Cat5e | Foil | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | UL Style CMP | 5.97 mm | 0.235 in | 100 % | 300 V | Aluminum, Polyester | Drain Wire | 8 | Orange | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Ethernet, LAN, Video | 1000 ft | 304.8 m | Solid | ||
Belden Inc. 1213F 0091000 | Copper, Bare | Multi-Pair, Cat5e | Foil | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | UL Style CMP | 5.97 mm | 0.235 in | 100 % | 300 V | Aluminum, Polyester | Drain Wire | 8 | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Ethernet, LAN, Video | 1000 ft | 304.8 m | Solid | |||
Belden Inc. 1213F 0031000 | Copper, Bare | Multi-Pair, Cat5e | Foil | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | UL Style CMP | 5.97 mm | 0.235 in | 100 % | 300 V | Aluminum, Polyester | Drain Wire | 8 | Orange | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Ethernet, LAN, Video | 1000 ft | 304.8 m | Solid | ||
Belden Inc. 1213F 0101000 | Copper, Bare | Multi-Pair, Cat5e | Foil | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | UL Style CMP | 5.97 mm | 0.235 in | 100 % | 300 V | Aluminum, Polyester | Drain Wire | 8 | Black | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Ethernet, LAN, Video | 1000 ft | 304.8 m | Solid | ||
Belden Inc. 1213F 009A500 | Copper, Bare | Multi-Pair, Cat5e | Foil | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | UL Style CMP | 5.97 mm | 0.235 in | 100 % | 300 V | Aluminum, Polyester | Drain Wire | 8 | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Ethernet, LAN, Video | Solid | 500 ' | 152.4 m | |||
Belden Inc. 1213F D151000 | Copper, Bare | Multi-Pair, Cat5e | Foil | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | UL Style CMP | 5.97 mm | 0.235 in | 100 % | 300 V | Aluminum, Polyester | Drain Wire | 8 | Blue | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Ethernet, LAN, Video | 1000 ft | 304.8 m | Solid | ||
Belden Inc. 1213F D15A500 | Copper, Bare | Multi-Pair, Cat5e | Foil | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | UL Style CMP | 5.97 mm | 0.235 in | 100 % | 300 V | Aluminum, Polyester | Drain Wire | 8 | Blue | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Ethernet, LAN, Video | Solid | 500 ' | 152.4 m | ||
Belden Inc. 1213F 010A1000 | Copper, Bare | Multi-Pair, Cat5e | Foil | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | UL Style CMP | 5.97 mm | 0.235 in | 100 % | 300 V | Aluminum, Polyester | Drain Wire | 8 | Black | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | Ethernet, LAN, Video | 1000 ft | 304.8 m | Solid |
