1932/3 BK003

Active

ALPHA WIRE

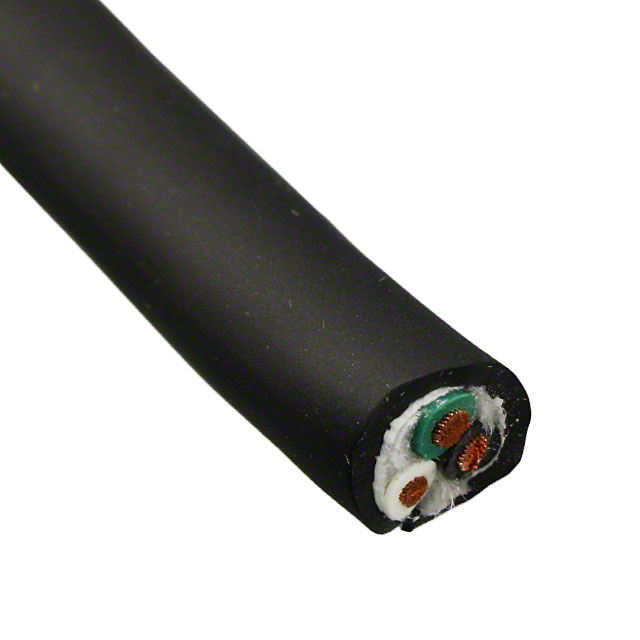

CABLE 3COND 18AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 18AWG BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1932/3 BK003

Cable Type	Multi-Conductor
Conductor Insulation	Rubber
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.85 mm
Jacket (Insulation) Diameter [diameter]	0.309 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Black
Length	15.24 m, 3.05 m
Length	10 ft
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Voltage	300 V
Wire Gauge	18 AWG

CABLE 3COND 18AWG BLACK 100'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length [x]	Conductor Material	Number of Conductors	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Cable Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Voltage	Wire Gauge	Jacket (Insulation) Material
ALPHA WIRE 1932/3 BK003	7.85 mm	0.309 in	3.05 m, 15.24 m	50 ft, 100 ft	Copper, Bare	3	10 ft	0.864 mm	0.034 in	Rubber	Multi-Conductor	Black	16	30 AWG	90 °C	-40 °C	30.5 m	300 V	18 AWG	Polyethylene (PE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 18 AWG 100.0' (30.5m)
