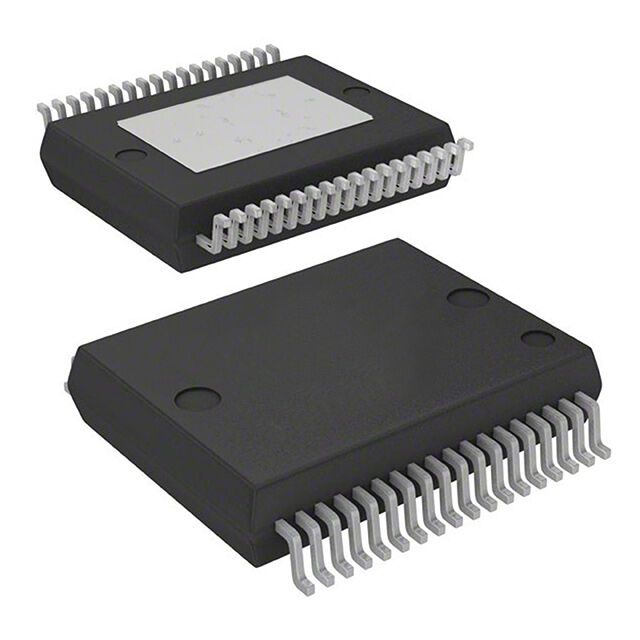

TLE8110EDXUMA1
Active10-CHANNEL LOW-SIDE SWITCH IN SMART POWER TECHNOLOGY WITH SERIAL PERIPHERAL INTERFACE AND 10 OPEN DRAIN DMOS OUTPUT STAGES
Deep-Dive with AI
Search across all available documentation for this part.
TLE8110EDXUMA1
Active10-CHANNEL LOW-SIDE SWITCH IN SMART POWER TECHNOLOGY WITH SERIAL PERIPHERAL INTERFACE AND 10 OPEN DRAIN DMOS OUTPUT STAGES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE8110EDXUMA1 |
|---|---|
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Package / Case | 36-BFSOP |
| Package / Case [custom] | 7.5 mm |
| Package / Case [custom] | 0.295 " |
| Qualification | AEC-Q100 |
| Supplier Device Package | PG-DSO-36-72 |
| Type | Low-Side Switch |
TLE8110 Series
| Part | Mounting Type | Grade | Package / Case [custom] | Package / Case [custom] | Package / Case | Qualification | Type | Supplier Device Package | Output Configuration | Switch Type | Fault Protection | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Number of Outputs | Package / Case [x] | Package / Case [y] | Ratio - Input:Output [custom] | Voltage - Load [Min] | Voltage - Load [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Infineon Technologies | Surface Mount | Automotive | 7.5 mm | 0.295 " | 36-BFSOP | AEC-Q100 | Low-Side Switch | PG-DSO-36-72 | |||||||||||||||
Infineon Technologies | Surface Mount | Automotive | 36-BSSOP | PG-DSO-36-EP | Low Side | General Purpose | Open Load Detect Over Temperature Over Voltage | 5.5 V | 4.5 V | 150 °C | -40 °C | Parallel SPI | 10 | 0.295 in | 7.5 mm | 1:1 | 3 V | 5.5 V | N-Channel |
