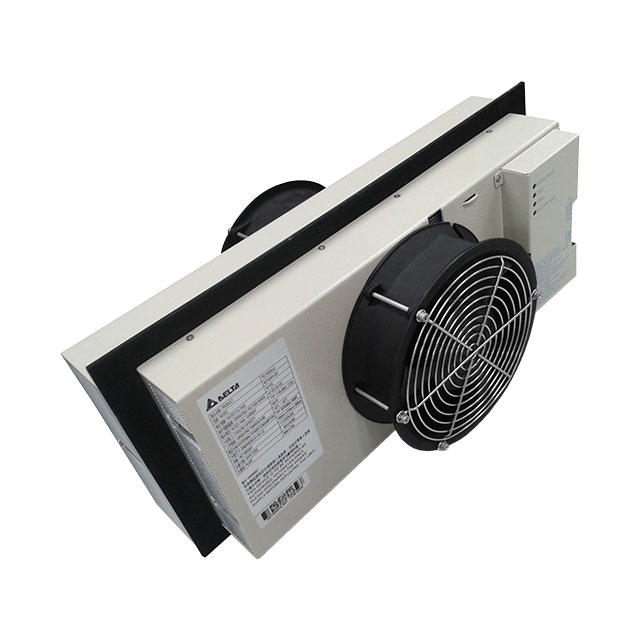

HET400PA
ActiveDelta Electronics
THERMOELECT ASSY AIR-AIR 400W
Deep-Dive with AI
Search across all available documentation for this part.
HET400PA
ActiveDelta Electronics
THERMOELECT ASSY AIR-AIR 400W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HET400PA |
|---|---|
| Current | 13.5 A |
| Dimensions - Overall [x] | 450 mm |
| Dimensions - Overall [y] | 228 mm |
| Dimensions - Overall [z] | 210 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Cooling | 400 W |
| Voltage | 48 V |
| Weight | 24 lbs |
| Weight | 10.9 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1552.88 | |
| 5 | $ 1294.06 | |||
Description
General part information
HET400 Series
Air to Air Thermoelectric Assembly 400 W
Documents
Technical documentation and resources
