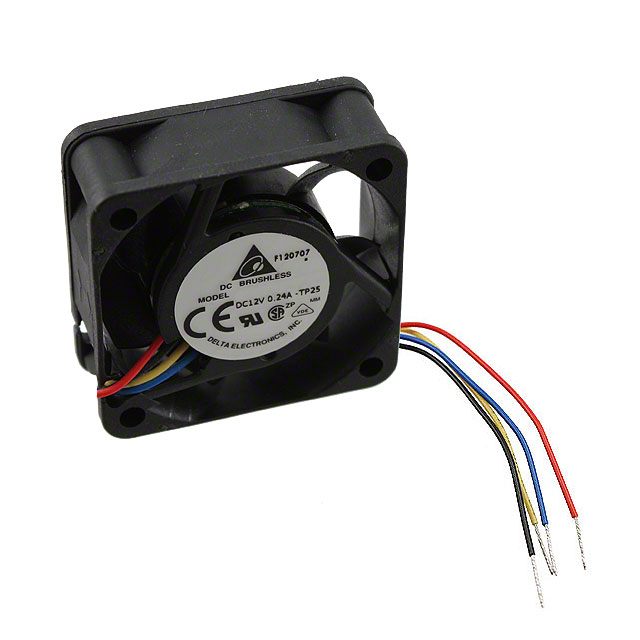

AFB0412VHB-TP25
ObsoleteDelta Electronics
DC FAN AXIAL BALL 12V 7V TO 13.8V 13CFM 36.5DB 40 X 40 X 15MM
Deep-Dive with AI
Search across all available documentation for this part.
AFB0412VHB-TP25
ObsoleteDelta Electronics
DC FAN AXIAL BALL 12V 7V TO 13.8V 13CFM 36.5DB 40 X 40 X 15MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0412VHB-TP25 |
|---|---|
| Air Flow | 0.364 mł/min |
| Air Flow | 13 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.18 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor, PWM Control |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 36.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.16 W |
| RPM | 9500 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 0.459 in H2O |
| Static Pressure | 114.3 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 0.057 lb |
| Weight | 25.85 g |
| Width [x] | 15 mm |
AFB0412 Series
| Part | Material - Frame | Fan Type | Weight | Weight | Termination | Lifetime @ Temp. | Power (Watts) | Approval Agency | Air Flow | Air Flow | RPM | Noise | Voltage Range [Min] | Voltage Range [Max] | Bearing Type | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Width [y] | Voltage - Rated | Static Pressure | Static Pressure | Material - Blade | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Current Rating (Amps) | Width [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | Plastic | Tubeaxial | 14.06 g | 0.031 lb | 2 Wire Leads | 70000 Hrs | 600 mW | CE CSA UL VDE | 0.23 mł/min | 8.2 CFM | 7000 RPM | 31.5 dB | 7 V | 13.8 VDC | Ball | 40 mm | Square | 40 mm | 10 mm | 12 VDC | 47.3 Pa | 0.19 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 50 mA | ||
Delta Electronics | Plastic | Tubeaxial | 25.85 g | 0.057 lb | 2 Wire Leads | 70000 Hrs | 3 W | 0.414 mł/min | 14.8 CFM | 11000 RPM | 41.5 dB | 7 V | 13.8 VDC | Ball | 40 mm | Square | 40 mm | 12 VDC | 149.7 Pa | 0.601 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.25 A | 15 mm | |||
Delta Electronics | Plastic | Tubeaxial | 25.85 g | 0.057 lb | 3 Wire Leads | 70000 Hrs | 2.52 W | cURus TUV | 0.426 m³/min | 15.2 CFM | 12000 RPM | 46 dB(A) | 5 VDC | 13.2 VDC | Ball | 40 mm | Square | 40 mm | 12 VDC | 155 Pa | 0.622 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.21 A | 15 mm | Locked Rotor Sensor | |
Delta Electronics | Plastic | Tubeaxial | 25.85 g | 0.057 lb | 2 Wire Leads | 70000 Hrs | 1.56 W | CE CSA UL VDE | 0.322 m³/min | 11.5 CFM | 8300 RPM | 32 dB | 7 V | 13.8 VDC | Ball | 40 mm | Square | 40 mm | 12 VDC | 89.4 Pa | 0.359 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 15 mm | |||
Delta Electronics | Plastic | Tubeaxial | 25.85 g | 0.057 lb | 4 Wire Leads | 70000 Hrs | 2.16 W | CE CSA UL VDE | 0.364 mł/min | 13 CFM | 9500 RPM | 36.5 dB(A) | 7 V | 13.8 VDC | Ball | 40 mm | Square | 40 mm | 12 VDC | 114.3 Pa | 0.459 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.18 A | 15 mm | Locked Rotor Sensor PWM Control | |
Delta Electronics | Plastic | Tubeaxial | 14.06 g | 0.031 lb | 4 Wire Leads | 70000 Hrs | 1.08 W | CSA UR VDE | 0.246 mł/min | 8.8 CFM | 8000 RPM | 33 dB(A) | 7 V | 15 V | Ball | 40 mm | Square | 40 mm | 10 mm | 12 VDC | 55.8 Pa | 0.224 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.09 A | Locked Rotor Protection PWM Control Speed Sensor (Tach) | |
Delta Electronics | Plastic | Tubeaxial | 25.85 g | 0.057 lb | 3 Wire Leads | 70000 Hrs | 2.52 W | cURus TUV | 0.426 m³/min | 15.2 CFM | 12000 RPM | 46 dB(A) | 5 VDC | 13.2 VDC | Ball | 40 mm | Square | 40 mm | 12 VDC | 155 Pa | 0.622 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.21 A | 15 mm | Locked Rotor Protection Speed Sensor (Tach) | |
Delta Electronics | Plastic | Tubeaxial | 25.85 g | 0.057 lb | 2 Wire Leads | 70000 Hrs | 3 W | CE CSA UL VDE | 0.414 mł/min | 14.8 CFM | 11000 RPM | 41.5 dB | 7 V | 13.8 VDC | Ball | 40 mm | Square | 40 mm | 12 VDC | 149.7 Pa | 0.601 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 0.25 A | 15 mm | ||
Delta Electronics | Plastic | Tubeaxial | 25.85 g | 0.057 lb | 3 Wire Leads | 70000 Hrs | 1.2 W | CE CSA UL VDE | 0.266 m³/min | 9.5 CFM | 7000 RPM | 28.5 dB(A) | 7 V | 13.8 VDC | Ball | 40 mm | Square | 40 mm | 12 VDC | 67.7 Pa | 0.272 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 100 mA | 15 mm | Locked Rotor Sensor | |
Delta Electronics | Plastic | Tubeaxial | 25.85 g | 0.057 lb | 3 Wire Leads | 70000 Hrs | 1.2 W | CE CSA UL VDE | 0.266 m³/min | 9.5 CFM | 7000 RPM | 28.5 dB(A) | 7 V | 13.8 VDC | Ball | 40 mm | Square | 40 mm | 12 VDC | 67.7 Pa | 0.272 in H2O | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | 100 mA | 15 mm | Locked Rotor Protection Speed Sensor (Tach) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AFB0412 Series
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 13.0 CFM (0.364m³/min) 4 Wire Leads
