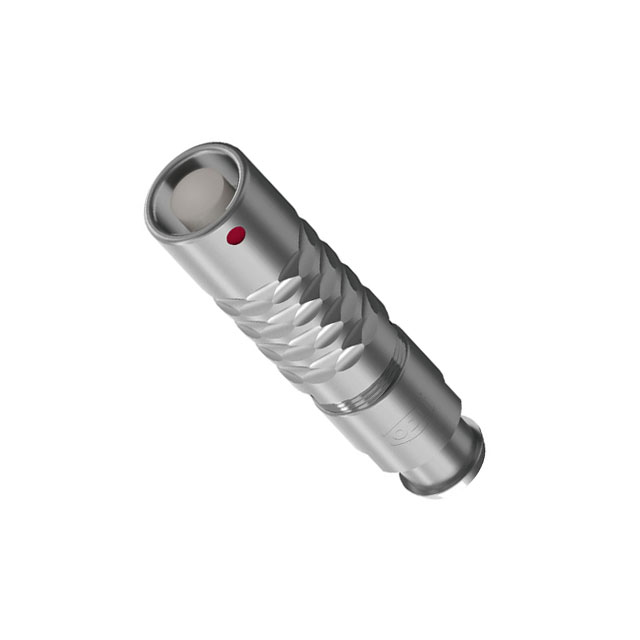

Specification	K2CL0C-P02LCC0-3000

Applications	Testing Equipment & Measurement, Medical, Military, Industrial
Backshell Material	Brass
Cable Opening (Max)	0.118 in
Cable Opening (Min)	0.098 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	4 A
Fastening Type	Push-Pull
Features	Backshell, Strain Relief
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	0 °
Plating	Chrome over Nickel
Primary Material	Metal
Shell Finish	Chrome, Nickel
Shell Material	Brass
Shell Size - Insert	00
Termination	Solder Cup

K2CL0C-P Series

Part	Cable Opening (Min)	Cable Opening (Max)	Plating	Backshell Material	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Termination	Shell Material	Mounting Type	Connector Type	Current Rating	Color	Insert Material	Features	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Contact Material	Number of Positions	Shell Finish	Fastening Type	Applications
ODU K2CL0C-P02LCC0-3500	0.118 in	0.138 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell	Shielded	120 °C	-40 °C	Gold	Brass	2	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P03LCC0-2000	0.059 in	0.079 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell	Shielded	120 °C	-40 °C	Gold	Brass	3	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P03LCC0-3500	0.118 in	0.138 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell	Shielded	120 °C	-40 °C	Gold	Brass	3	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P03LCC0-2500	0.079 in	0.098 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell Strain Relief		120 °C	-40 °C	Gold	Brass	3	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P04LCC0-3500	0.118 in	0.138 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell	Shielded	120 °C	-40 °C	Gold	Brass	4	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P02LCC0-1500	0.039 in	0.059 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell	Shielded	120 °C	-40 °C	Gold	Brass	2	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P02LCC0-2500	0.079 in	0.098 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell Strain Relief		120 °C	-40 °C	Gold	Brass	2	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P04LCC0-2500	0.079 in	0.098 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell Strain Relief		120 °C	-40 °C	Gold	Brass	4	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P02LCC0-3000	0.098 in	0.118 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell Strain Relief		120 °C	-40 °C	Gold	Brass	2	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
ODU K2CL0C-P04LCC0-3000	0.098 in	0.118 in	Chrome over Nickel	Brass	Metal	Dust Protected	IP50	Solder Cup	Brass	Free Hanging (In-Line)	Female Sockets Receptacle	4 A	Silver	PEEK Polyetheretherketone	Backshell Strain Relief		120 °C	-40 °C	Gold	Brass	4	Chrome Nickel	Push-Pull	Industrial Medical Military Testing Equipment & Measurement
