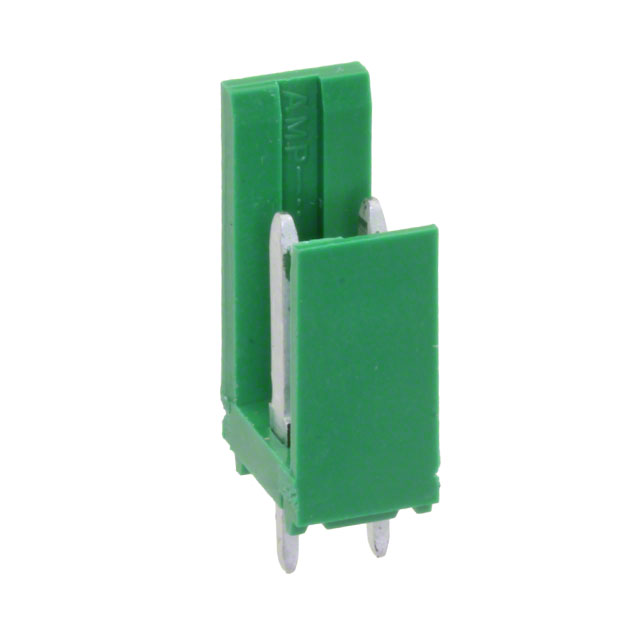

280609-1

Active

TE Connectivity Raychem Cable Protection

2P MOD 1 SHROUDED HEADER, ST, TIN PLTD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AMPMODU CONNECTOR REPORT (GERMANY)+1

280609-1

Active

TE Connectivity Raychem Cable Protection

2P MOD 1 SHROUDED HEADER, ST, TIN PLTD

Deep-Dive with AI

DocumentsDatasheet AMPMODU CONNECTOR REPORT (GERMANY)+1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	280609-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	10 mm
Contact Length - Mating	0.394 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Color	Green
Insulation Height	23.2 mm
Insulation Height	0.913 in
Insulation Material	Polycarbonate, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	16.3 mm
Overall Contact Length	0.642 in
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 2 Wall
Style	Board to Board, Cable
Termination	Solder

AMPMODU MOD 1 Series

Headers & Wire Housings MOD I RECP STMPD/RER

Part	Insulation Color	Contact Shape	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Termination	Material Flammability Rating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Material	Contact Type	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Pin or Socket	Contact Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Pitch [x]	Pitch [x]	Color	Note
TE Connectivity Raychem Cable Protection 1-87160-3	Black	Rectangular	Tin-Lead	0.655 in	16.64 mm	12	0.156 in	3.96 mm	Header	-65 ░C	105 ░C	Unshrouded	Board to Board Cable	2.54 µm	100 µin	5 A	Solder	UL94 V-0	Through Hole	0.405 in	10.29 mm	All	Thermoplastic	Male Pin	Tin-Lead	Push-Pull	0.125 in	3.18 mm	1	3.18 mm	0.125 in	2.54 çm	100 çin	Brass
TE Connectivity Raychem Cable Protection 85493-4																																			Socket	PCB Solder	Gold	50 µin	1.27 µm
TE Connectivity Raychem Cable Protection 280609-1	Green	Rectangular		0.642 in	16.3 mm	2	0.156 in	3.96 mm	Header			Shrouded - 2 Wall	Board to Board Cable				Solder	UL94 V-0	Through Hole		0.394 in	All	Polycarbonate Glass Filled	Male Pin	Tin	Detent Lock	0.913 in	23.2 mm	1					Brass						10 mm	0.13 in	3.3 mm
TE Connectivity Raychem Cable Protection 87986-4	Black	Square	Gold			4	0.156 in	3.96 mm	Receptacle	-65 ░C	105 ░C		Board to Board Cable				Solder	UL94 V-0	Through Hole			All	Thermoplastic	Female Socket	Gold	Push-Pull			1			0.76 Ám	30 Áin	Phosphor Bronze							0.112 in	2.84 mm	0.3 in	7.62 mm	Flash
TE Connectivity Raychem Cable Protection 3-86147-7																																			Pin	PCB Solder	Tin-Lead	100 µin	2.54 µm
TE Connectivity Raychem Cable Protection 280590						2			Receptacle										Free Hanging (In-Line)					Female Socket					1							Crimp										0.156 in	3.96 mm	Green	Contacts Not Included
TE Connectivity Raychem Cable Protection 826576-6	Green	Square		0.449 in	11.4 mm	6	0.156 in	3.96 mm	Breakaway Header			Unshrouded	Board to Board Cable	2.54 µm	100 µin		Solder		Through Hole	0.433 in	11 mm	All	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Tin	Push-Pull	0.118 in	3 mm	1	3.4 mm	0.134 in	2.54 çm	100 çin	Copper Alloy
TE Connectivity Raychem Cable Protection 87247-8	Black	Rectangular	Gold	0.655 in	16.64 mm	8	0.156 in	3.96 mm	Header	-65 ░C	105 ░C	Unshrouded	Board to Board Cable			5 A	Solder	UL94 V-0	Through Hole	0.587 in	14.91 mm	All	Thermoplastic	Male Pin	Gold	Push-Pull	0.125 in	3.18 mm	1	3.18 mm	0.125 in	0.76 Ám	30 Áin	Brass											Flash
TE Connectivity Raychem Cable Protection 5-87160-1	Black	Rectangular		0.655 in	16.64 mm		0.156 in	3.96 mm	Header	-65 ░C	105 ░C	Unshrouded	Board to Board Cable	2.54 µm	100 µin	5 A	Solder	UL94 V-0	Through Hole	0.405 in	10.29 mm	All	Thermoplastic	Male Pin	Tin	Push-Pull	0.125 in	3.18 mm	1	3.18 mm	0.125 in	2.54 çm	100 çin	Brass
TE Connectivity Raychem Cable Protection 87632-4	Black	Rectangular	Gold			4	0.156 in	3.96 mm	Header	-65 ░C	105 ░C	Unshrouded	Board to Board Cable			5 A	Solder	UL94 V-2	Through Hole Right Angle	0.345 in	8.76 mm	All	Thermoplastic	Male Pin		Push-Pull	0.25 in	6.35 mm	1			0.38 µm	15 µin	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		10	$ 0.21
		100	$ 0.18
		500	$ 0.15
		1000	$ 0.15

Description

General part information

AMPMODU MOD 1 Series

Headers & Wire Housings MOD I RECP STMPD/RER

Documents

Technical documentation and resources

Datasheet

AMPMODU CONNECTOR REPORT (GERMANY)

Agency Approvals

Datasheet

Digital Datasheet
