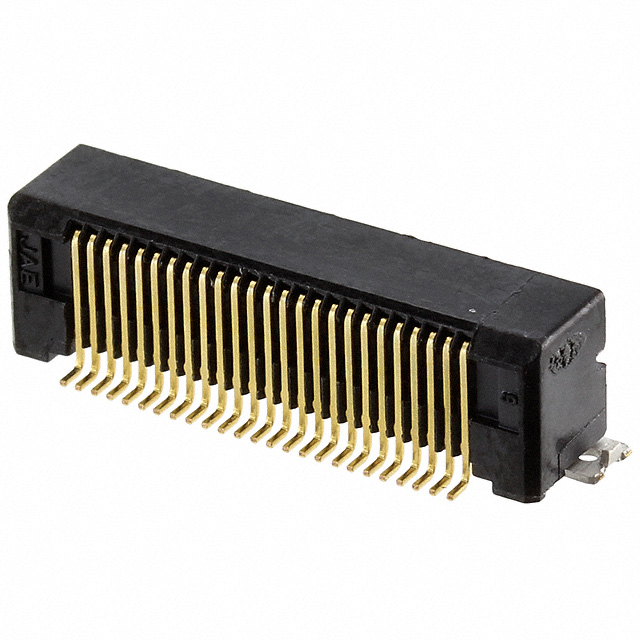

WR-50P-HF-HD-A1E
ActiveJAE Electronics
CONN PLUG 50POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR-50P-HF-HD-A1E
ActiveJAE Electronics
CONN PLUG 50POS R/A SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR-50P-HF-HD-A1E |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 116 | $ 6.01 | |
Description
General part information
WR-50P-H Series
50 Position Connector Plug, Outer Shroud Contacts Surface Mount, Right Angle Gold
