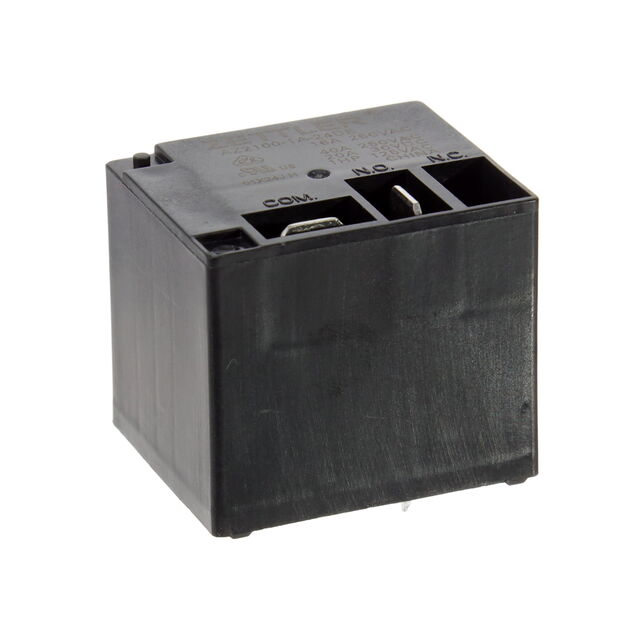

AZ2100-1A-6DE

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 6V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2100-1A-6DE

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 6V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.25
		10	$ 2.00
		25	$ 1.92
		50	$ 1.85
		240	$ 1.71
		480	$ 1.65
		720	$ 1.62
		1200	$ 1.58
		5040	$ 1.47

Description

General part information

AZ2100-1A Series

General Purpose Relay SPST-NO (1 Form A) 6VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ2100-1A-6DE	AZ2100-1A Series

Approval Agency	cURus, VDE	cURus, VDE
Coil Current	150 mA	8.2 - 150 mA
Coil Insulation	Class B	Class F, Class B
Coil Resistance	40 Ohms	13.45 - 2560 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	-	12 - 110 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A	40 A
Load - Max Switching	1200 W, 12000 VA	1200 - 12000 W
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	4.5 VDC	4.5 - 82.5 VDC
Must Release Voltage	0.6 VDC	0.6 - 11 VDC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	85 °C	85 - 105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Seal Rating	Sealed - Fully	Sealed - Fully
Switching Voltage	-	30 - 277 VAC
Switching Voltage [Max]	300 VAC, 30 VDC	30 - 300 VAC
Termination Style	PC Pin, Quick Connect	PC Pin, Quick Connect
Termination Style	0.25 in	0.25 in

AZ2100-1A Series

RELAY GEN PURPOSE SPST 40A 15V

Part	Contact Rating (Current)	Coil Resistance	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Contact Material	Release Time	Relay Type	Termination Style	Termination Style	Switching Voltage [Max]	Load - Max Switching	Coil Current	Must Release Voltage	Coil Voltage	Approval Agency	Coil Insulation	Mounting Type	Contact Form	Coil Type	Seal Rating	Switching Voltage
American Zettler AZ2100-1A-15DF	40 A	256 Ohms	11.25 VDC	105 ░C	-55 °C	15 ms	Silver Cadmium Oxide (AgCdO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA	58.6 mA	1.5 VDC	15 VDC	cURus, VDE	Class F	Through Hole	SPST-NO (1 Form A)	Non Latching
American Zettler AZ2100-1A-12DE	40 A	155 Ohms	9 VDC	85 °C	-55 °C	15 ms	Silver Cadmium Oxide (AgCdO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA	77.4 mA	1.2 VDC	12 VDC	cURus, VDE	Class B	Through Hole	SPST-NO (1 Form A)	Non Latching	Sealed - Fully
American Zettler AZ2100-1AE-24D	40 A	660 Ohms	18 VDC	85 °C	-55 °C	15 ms	Silver Tin Oxide (AgSnO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA	36.4 mA	2.4 VDC	24 VDC	cURus, VDE	Class B	Through Hole	SPST-NO (1 Form A)	Non Latching
American Zettler AZ2100-1A-18D	40 A	380 Ohms	13.5 VDC	85 °C	-55 °C	15 ms	Silver Cadmium Oxide (AgCdO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA	47.4 mA	1.8 VDC	18 VDC	cURus, VDE	Class B	Through Hole	SPST-NO (1 Form A)	Non Latching
American Zettler AZ2100-1AE-110DEF	40 A	13.45 kOhms	82.5 VDC	105 ░C	-55 °C	15 ms	Silver Tin Oxide (AgSnO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA	8.2 mA	11 VDC	110 VDC	cURus, VDE	Class F	Through Hole	SPST-NO (1 Form A)	Non Latching	Sealed - Fully
American Zettler AZ2100-1A-18DEF	40 A	380 Ohms	13.5 VDC	105 ░C	-55 °C	15 ms	Silver Cadmium Oxide (AgCdO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA	47.4 mA	1.8 VDC	18 VDC	cURus, VDE	Class F	Through Hole	SPST-NO (1 Form A)	Non Latching	Sealed - Fully
American Zettler AZ2100-1A-36DE	40 A			85 °C	-55 °C	15 ms	Silver Cadmium Oxide (AgCdO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA		3.6 VDC	36 VDC	cURus, VDE	Class B	Through Hole	SPST-NO (1 Form A)	Non Latching	Sealed - Fully
American Zettler AZ2100-1AE-36DE	40 A			85 °C	-55 °C	15 ms	Silver Tin Oxide (AgSnO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA		3.6 VDC	36 VDC	cURus, VDE	Class B	Through Hole	SPST-NO (1 Form A)	Non Latching	Sealed - Fully
American Zettler AZ2100-1A-24DEF	40 A	660 Ohms	18 VDC	85 °C	-55 °C	15 ms	Silver Cadmium Oxide (AgCdO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in		1200 W, 12000 VA	36.4 mA	2.4 VDC	24 VDC	cURus, VDE	Class F	Through Hole	SPST-NO (1 Form A)	Non Latching	Sealed - Fully	30 VDC, 277 VAC
American Zettler AZ2100-1A-6DE	40 A	40 Ohms	4.5 VDC	85 °C	-55 °C	15 ms	Silver Cadmium Oxide (AgCdO)	10 ms	General Purpose	PC Pin, Quick Connect	0.25 in	30 VDC, 300 VAC	1200 W, 12000 VA	150 mA	0.6 VDC		cURus, VDE	Class B	Through Hole	SPST-NO (1 Form A)	Non Latching	Sealed - Fully
