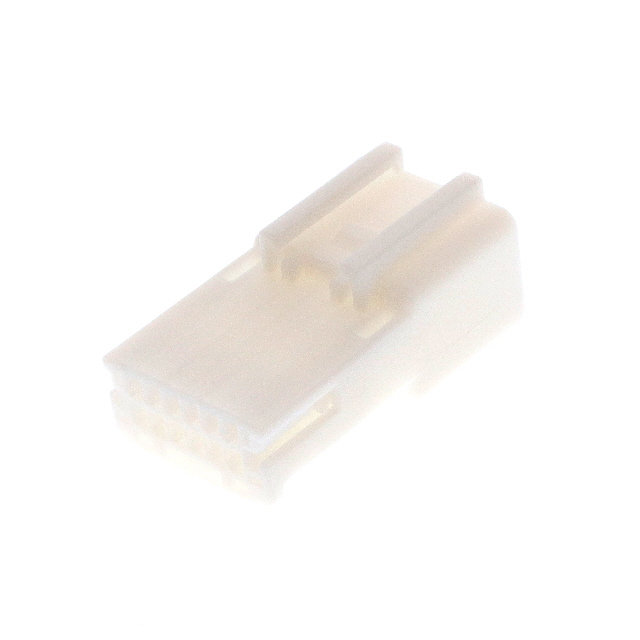

1473407-1
ActiveTE Connectivity Raychem Cable Protection
025 G 12POS CAP ASSY W TO W
Deep-Dive with AI
Search across all available documentation for this part.
1473407-1
ActiveTE Connectivity Raychem Cable Protection
025 G 12POS CAP ASSY W TO W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1473407-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.087 in |
| Pitch [x] | 2.2 mm |
| Row Spacing [x] | 0.118 in |
| Row Spacing [x] | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.15 | |
| 10 | $ 1.07 | |||
| 25 | $ 1.03 | |||
| 50 | $ 1.02 | |||
| 100 | $ 0.92 | |||
| 300 | $ 0.89 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.73 | |||
| 2500 | $ 0.68 | |||
Description
General part information
TH/.025 Connector System Series
12 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.2 mm [.087 in] Centerline, Natural, Signal, TH/.025 Connector System
