51-235.022DF

Active

EAO

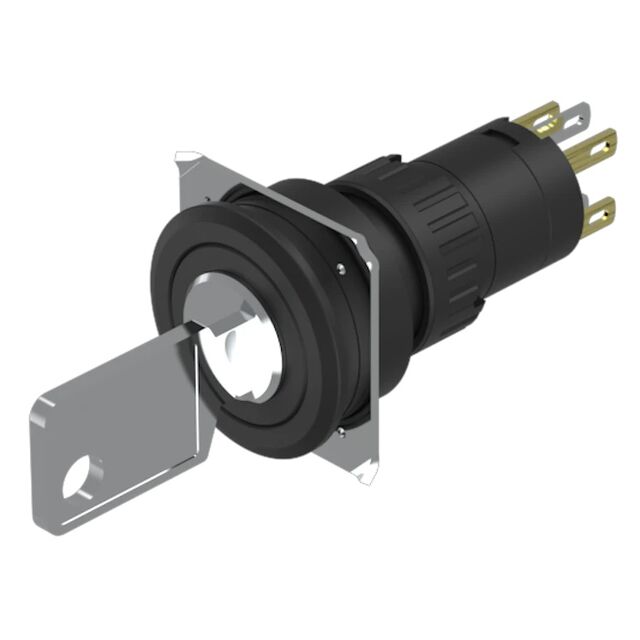

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	51-235.022DF	51-235 Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	DPST-NO/NC	DPST-NO/NC
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	5 A	5 A
Depth Behind Flange	44.5 mm	35.5 - 44.5 mm
Electrical Life	-	50000 Cycles
Features	IP65	IP65
Key Removable Positions	1 only	1 only
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	16 - 22.3 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Solder Lug, Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm
Voltage Rating - AC	250 V	250 V

SWITCH KEYLOCK 2POS DPST 5A 250V

Part	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Number of Positions	Features	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Depth Behind Flange	Angle of Throw	Contact Timing	Key Removable Positions	Electrical Life	Termination Style	Actuator Type	Current Rating (Amps)	Switch Function	Termination Style	Termination Style
EAO 51-235.025K	250 V	16 mm	2	IP65	DPST-NO/NC	55 °C	-25 °C	35.5 mm	90 °	Not Specified	1 only	50000 Cycles	Solder Lug	Flat Key	5 A	Off-On, On-Off
EAO 51-235.022D	250 V	16 mm	2	IP65	DPST-NO/NC	55 °C	-25 °C	36 mm	90 °	Not Specified	1 only		Solder Lug	Flat Key	5 A	Off-On, On-Off
EAO 51-235.022DF	250 V	22.3 mm	2	IP65	DPST-NO/NC	55 °C	-25 °C	44.5 mm	90 °	Not Specified	1 only		Quick Connect, Solder	Flat Key	5 A	Off-On, On-Off	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
