10125836-06-001
ObsoleteAmphenol ICC (FCI)

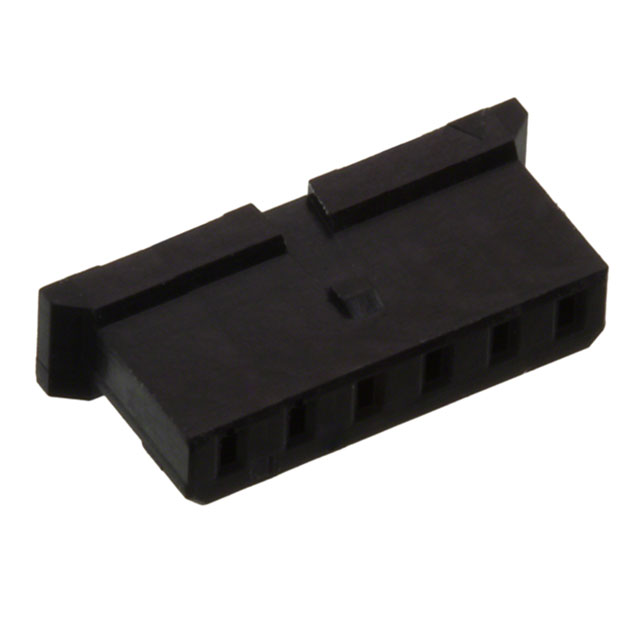

CONN PLUG HSG 6POS 1.20MM
Deep-Dive with AI
Search across all available documentation for this part.
10125836-06-001
ObsoleteAmphenol ICC (FCI)
CONN PLUG HSG 6POS 1.20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10125836-06-001 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Blade Socket |
| Fastening Type | Friction Lock |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch [x] | 1.2 mm |
| Pitch [x] | 0.047 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.18 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
Description
General part information
10125836 Series
6 Rectangular Connectors - Housings Plug Black 0.047" (1.20mm)
Documents
Technical documentation and resources
No documents available
