CONN SPRING BATTERY 4POS R/A SMD

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN SPRING BATTERY 4POS R/A SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

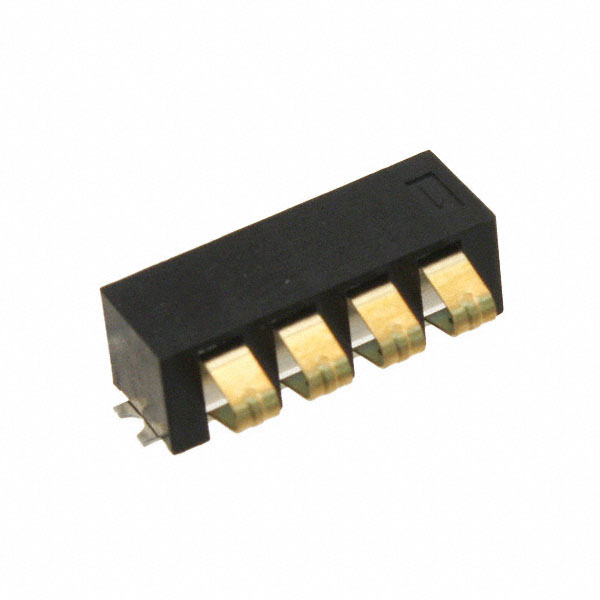

4 Position Spring Battery Contact Connector Surface Mount, Right Angle

Technical documentation and resources

Specification	009155004541006	009155 Series

Connector Type	Battery Contact	Battery Contact
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 - 16 µin
Contact Finish Thickness	0.38 µm	0.38 - 0.41 µm
Material	Beryllium Copper	Phosphor Bronze, Beryllium Copper
Mounting Type	Surface Mount, Right Angle	Surface Mount, Surface Mount, Right Angle
Number of Contacts	-	3 - 5
Number of Contacts [custom]	4	4 - 6
Number of Rows	1	1
Pitch [x]	0.098 in	0.05 - 0.157 in
Pitch [x]	2.5 mm	1.27 - 4 mm

Part	Contact Finish	Number of Contacts	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Material	Number of Rows	Number of Contacts [custom]
KYOCERA AVX 009155003402006	Gold	3	16 µin	0.41 µm	Battery Contact	4 mm	0.157 in	Surface Mount	Phosphor Bronze	1
KYOCERA AVX 009155005003016	Gold	5	15 µin	0.38 µm	Battery Contact	2.5 mm	0.098 in	Surface Mount		1
KYOCERA AVX 009155006401006	Gold		16 µin	0.41 µm	Battery Contact	4 mm	0.157 in	Surface Mount	Beryllium Copper	1	6
KYOCERA AVX 009155005852006	Gold	5	16 µin	0.41 µm	Battery Contact	2 mm	0.079 in	Surface Mount, Right Angle	Beryllium Copper	1
KYOCERA AVX 009155004541006	Gold		15 µin	0.38 µm	Battery Contact	2.5 mm	0.098 in	Surface Mount, Right Angle	Beryllium Copper	1	4
KYOCERA AVX 009155004402006	Gold		16 µin	0.41 µm	Battery Contact	4 mm	0.157 in	Surface Mount	Phosphor Bronze	1	4
KYOCERA AVX 009155004301006	Gold		15 µin	0.38 µm	Battery Contact	3 mm	0.118 in	Surface Mount, Right Angle		1	4
KYOCERA AVX 009155003852006	Gold	3	16 µin	0.41 µm	Battery Contact	2 mm	0.079 in	Surface Mount, Right Angle	Beryllium Copper	1
KYOCERA AVX 009155003201006	Gold	3	15 µin	0.38 µm	Battery Contact	2.5 mm	0.098 in	Surface Mount		1
KYOCERA AVX 009155002100006	Gold		15 µin	0.38 µm	Battery Contact	2.5 mm	0.098 in	Surface Mount		1
