2-87215-5

Active

TE Connectivity AMP Connectors

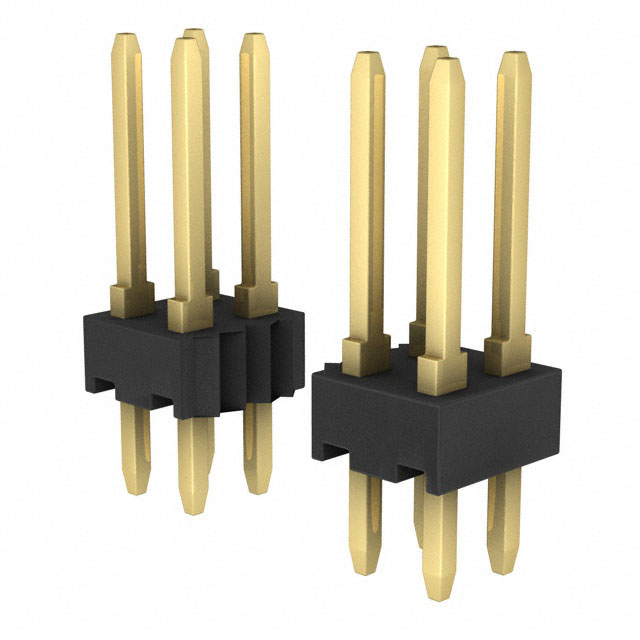

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

2-87215-5

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.59
		10	$ 13.31
		100	$ 12.46

Description

General part information

87215 Series

Connector Header Through Hole 50 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-87215-5	87215 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Circular	Circular, Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	50	2 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87215 Series

CONN HEADER VERT 18POS 2.54MM

Part	Insulation Color	Contact Finish - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Connector Type	Termination	Number of Rows	Style	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Height	Insulation Height	Number of Positions Loaded	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Material	Contact Type	Fastening Type	Current Rating (Amps)	Material Flammability Rating	Number of Positions
TE Connectivity AMP Connectors 87215-6	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Circular	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	18	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 2-87215-6	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Circular	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	52	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 87215-5	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm		13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0	16
TE Connectivity AMP Connectors 87215-4	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	14	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 1-87215-0	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in			Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Circular	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	2	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 87215-9	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	26	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 2-87215-2	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	44	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 87215-7	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	20	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 87215-8	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	24	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 4-87215-0	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Circular	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	80	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
