87215-9

Active

TE Connectivity AMP Connectors

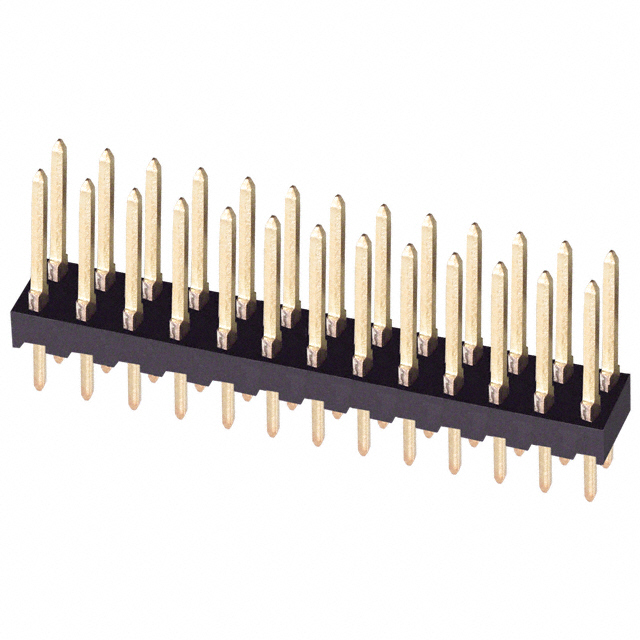

CONN HEADER VERT 26POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

87215-9

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 26POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	87215-9	87215 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Circular, Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.09 in	0.09 in
Insulation Height	2.29 mm	2.29 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	26	2 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	13.55 mm	13.55 mm
Overall Contact Length	0.533 in	0.533 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87215 Series

CONN HEADER VERT 18POS 2.54MM

Part	Insulation Color	Contact Finish - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Connector Type	Termination	Number of Rows	Style	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Height	Insulation Height	Number of Positions Loaded	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Material	Contact Type	Fastening Type	Current Rating (Amps)	Material Flammability Rating	Number of Positions
TE Connectivity AMP Connectors 87215-6	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Circular	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	18	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 2-87215-6	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Circular	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	52	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 87215-5	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm		13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0	16
TE Connectivity AMP Connectors 87215-4	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	14	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 1-87215-0	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in			Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Circular	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	2	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 87215-9	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	26	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 2-87215-2	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	44	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 87215-7	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	20	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 87215-8	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Square	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	24	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0
TE Connectivity AMP Connectors 4-87215-0	Black	Gold	Thermoplastic	-65 ░C	105 ░C	Flash	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	Header	Solder	2	Board to Board, Cable	Gold	3.18 mm	0.125 in	30 Áin	0.76 Ám	Circular	0.09 in	2.29 mm	All	Unshrouded	0.318 "	8.08 mm	80	13.55 mm	0.533 in	Phosphor Bronze	Male Pin	Push-Pull	3 A	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.48
		10	$ 6.76
		120	$ 6.30

Description

General part information

87215 Series

Connector Header Through Hole 26 position 0.100" (2.54mm)
