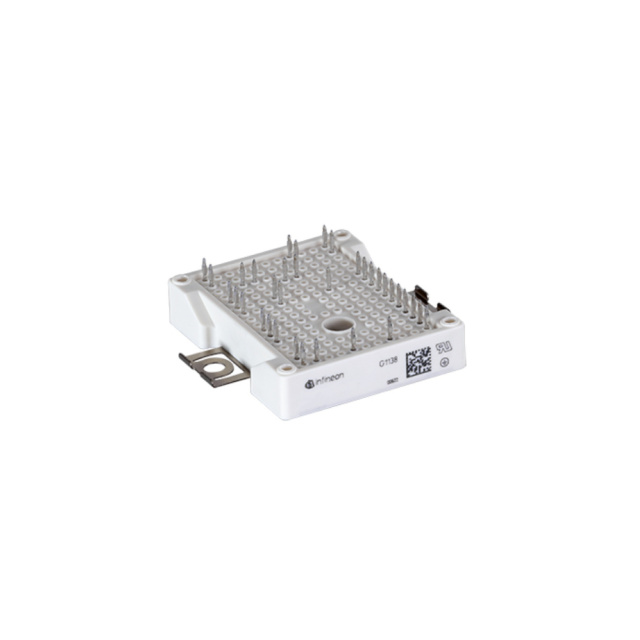

DF120R12W2H3B27BOMA1

Active

Infineon Technologies

THE DF120R12W2H3_B27 IS A BOOSTER IGBT HIGHSPEED 3 MODULE IN A EASYPACK™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 120 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE DF120R12W2H3_B27 IS A BOOSTER IGBT HIGHSPEED 3 MODULE IN A EASYPACK™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 120 A.

Technical Specifications

Parameters and characteristics for this part

Specification	DF120R12W2H3B27BOMA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max)	50 A
Current - Collector Cutoff (Max) [Max]	1 mA
Input	Standard
Input Capacitance (Cies) @ Vce	2.35 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	180 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.4 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Configuration	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	Current - Collector Cutoff (Max) [Max]	Package / Case	Current - Collector (Ic) (Max)	NTC Thermistor	Input Capacitance (Cies) @ Vce	Power - Max [Max]	Mounting Type	Supplier Device Package
Infineon Technologies DF120R12W2H3B27BOMA1	Three Phase Inverter	2.4 V	1200 V	Standard	1 mA	Module	50 A		2.35 nF	180 W	Chassis Mount	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EasyPACK™2B 1200 V, 120 A boosterIGBT modulewithPressFIT contact technologyand High Speed IGBT H3.
