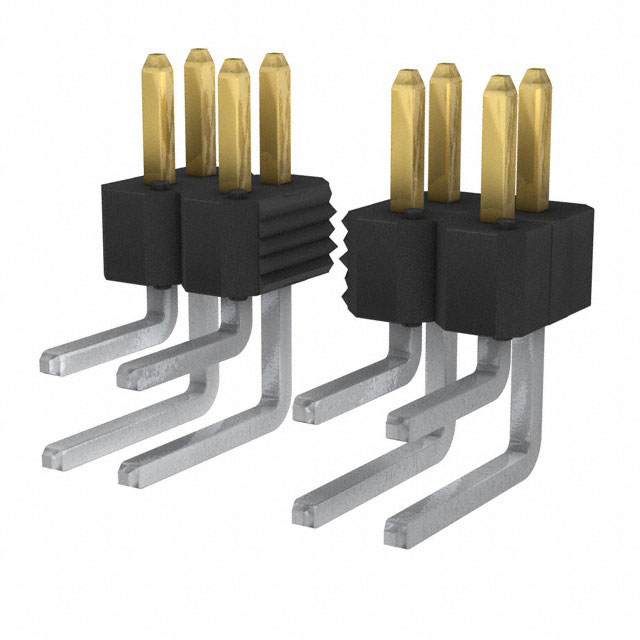

10122297-124004LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet bus-12-059 Other Related Document

10122297-124004LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet bus-12-059 Other Related Document

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10122297-124004LF

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	18
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

10122297 Series

Part	Number of Positions	Contact Material	Fastening Type	Contact Finish - Post	Contact Shape	Insulation Color	Material Flammability Rating	Termination	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating	Connector Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Length - Mating	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 10122297-126008LF	26	Copper Alloy	Push-Pull	Tin	Square	Black	UL94 V-0	Solder	14	2.41 mm	0.095 in	0.23 in	5.84 mm	Breakaway Header	Male Pin	30 Áin	0.76 Ám	4.83 mm	0.19 in	Through Hole Right Angle	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 10122297-210007LF	10	Copper Alloy	Push-Pull	Tin	Square	Black	UL94 V-0	Solder	9	3.05 mm	0.12 in	0.23 in	5.84 mm	Breakaway Header	Male Pin	15 µin	0.38 µm	4.83 mm	0.19 in	Through Hole Right Angle	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 10122297-212001LF	12	Copper Alloy	Push-Pull	Tin	Square	Black	UL94 V-0	Solder	10	3.05 mm	0.12 in	0.23 in	5.84 mm	Breakaway Header	Male Pin	15 µin	0.38 µm	4.83 mm	0.19 in	Through Hole Right Angle	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 10122297-210002LF	10	Copper Alloy	Push-Pull	Tin	Square	Black	UL94 V-0	Solder	9	3.05 mm	0.12 in	0.23 in	5.84 mm	Breakaway Header	Male Pin	15 µin	0.38 µm	4.83 mm	0.19 in	Through Hole Right Angle	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	2
Amphenol ICC (FCI) 10122297-124004LF	24	Copper Alloy	Push-Pull	Tin	Square	Black	UL94 V-0	Solder	18				3.5 mm	Breakaway Header	Male Pin	30 Áin	0.76 Ám	4.83 mm	0.19 in	Through Hole Right Angle	Gold or Gold GXT™	Unshrouded	0.1 in	2.54 mm	2.54 mm	0.1 in	2	0.138 in	3.5 mm	0.138 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1600	$ 1.13
