S6E2H14G0AGB30000
ActiveInfineon Technologies
MCU 32-BIT ARM CORTEX M4F RISC 256KB FLASH 3.3V/5V 121-PIN FBGA TRAY
Deep-Dive with AI
Search across all available documentation for this part.
S6E2H14G0AGB30000
ActiveInfineon Technologies
MCU 32-BIT ARM CORTEX M4F RISC 256KB FLASH 3.3V/5V 121-PIN FBGA TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S6E2H14G0AGB30000 |
|---|---|
| Connectivity | I2C, LINbus, UART/USART, CSIO, EBI/EMI |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Data Converters | A/D 24x12b, D/A 2x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 100 I/O |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

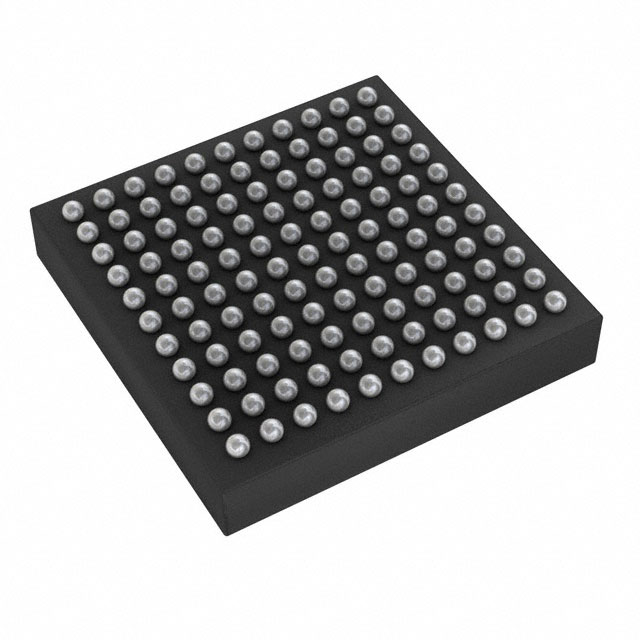

| Package / Case | 121-TFBGA |
| Peripherals | DMA, LVD, PWM, POR, WDT |
| Program Memory Size | 288 KB |
| Program Memory Type | FLASH |
| Speed | 160 MHz |
| Supplier Device Package | 121-FBGA (6x6) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S6E2H14 Series
ARM® Cortex®-M4F FM4 S6E2H1 Microcontroller IC 32-Bit Single-Core 160MHz 288KB (288K x 8) FLASH 121-FBGA (6x6)
Documents
Technical documentation and resources
No documents available
