Q14P1CXXR110E

Active

APEM

LED PANEL MOUNT INDICATOR, PROMINENT BEZEL, RED, 110 VAC, 14 MM, 6 MA, 80 MCD, IP67

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q14P1CXXR110E

Active

APEM

LED PANEL MOUNT INDICATOR, PROMINENT BEZEL, RED, 110 VAC, 14 MM, 6 MA, 80 MCD, IP67

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q14P1CXXR110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	Red
Lens Color	Red
Lens Size [diameter]	10 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	100 mcd
Panel Cutout Dimensions	13.97 mm
Panel Cutout Dimensions	0.55 in
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	LED
Viewing Angle	100 °
Voltage	110 V

Q14P1CXXR Series

Part	Panel Cutout Shape	Lamp Color	Lens Transparency	Ratings	Viewing Angle	Current	Lens Color	Voltage	Ingress Protection	Millicandela Rating	Type	Lens Size [diameter]	Lens Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Termination Style
APEM Q14P1CXXR110E	Round	Red	Diffused	AC	100 °	6 mA	Red	110 V	IP67	100 mcd	LED	10 mm	Round with Domed Top	13.97 mm	0.55 in	Quick Connect - 0.110" (2.8mm)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.88
		25	$ 14.65
		100	$ 13.37
		500	$ 12.33
Newark	Each	25	$ 16.89
		50	$ 16.44
		100	$ 16.01

Description

General part information

Q14P1CXXR Series

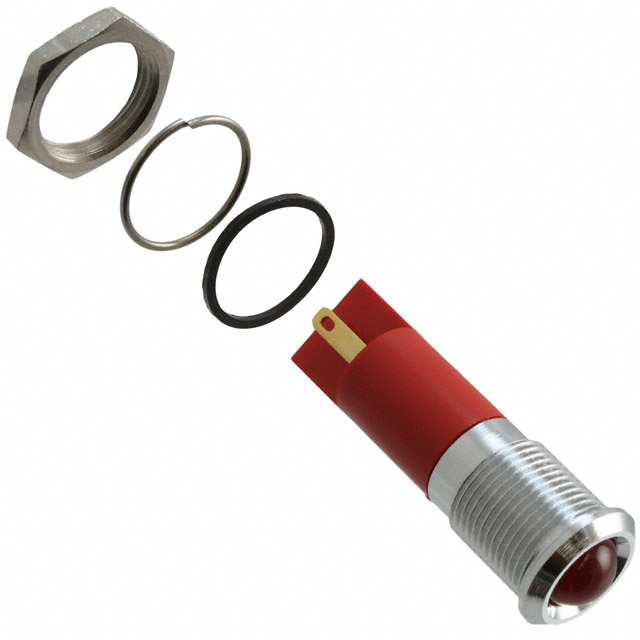

The Q14P1CXXR110E is a red panel-mount LED Indicator with prominent-style bright chrome bezel and solder lug/Faston terminals. It offers fixed light illumination.
