9WV1248P1J001

Active

Sanyo Denki America Inc.

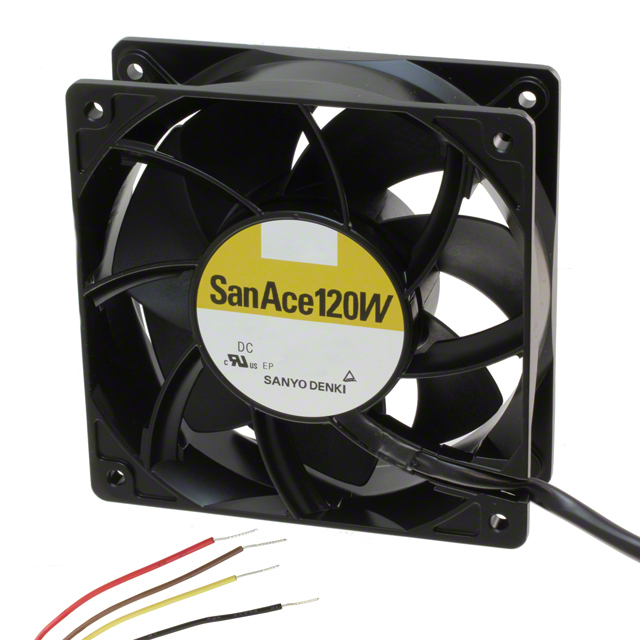

FAN AXIAL 120X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 48VDC WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 224.0 CFM (6.27m³/min) 4 Wire Leads

Technical documentation and resources

Specification	9WV1248P1J001	9WV1248 Series

Air Flow	6.27 mł/min	6.27 mł/min
Air Flow	224 CFM	224 CFM
Approval Agency	CSA, TUV, UL	CSA, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	650 mA	650 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Speed Sensor (Tach), PWM Control	Speed Sensor (Tach), PWM Control, Locked Rotor Protection, Locked Rotor Sensor
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic	Plastic
Material - Frame	Aluminum	Aluminum
Noise	64 dB(A)	64 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	31.2 W	31.2 W
RPM	6400 RPM	6400 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	1.45 in H2O	1.45 in H2O
Static Pressure	361.2 Pa	361.2 Pa
Termination	4 Wire Leads	4 Wire Leads, 3 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	55.2 VDC	55.2 VDC
Voltage Range [Min]	40.8 VDC	40.8 VDC
Weight	0.97 lb	0.97 lb
Weight	439.98 g	439.98 - 440 g
Width [y]	38 mm	38 mm

Part	Approval Agency	Ingress Protection	Static Pressure	Static Pressure	Weight	Weight	Voltage - Rated [custom]	Termination	Width [y]	Air Flow	Air Flow	Bearing Type	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Noise	Features	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	RPM	Current Rating (Amps)	Material - Frame
Sanyo Denki America Inc. 9WV1248P1J001	CSA, TUV, UL	IP68 - Dust Tight, Waterproof	1.45 in H2O	361.2 Pa	0.97 lb	439.98 g	48 VDC	4 Wire Leads	38 mm	6.27 mł/min	224 CFM	Ball	31.2 W	120 mm	120 mm	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	64 dB(A)	PWM Control, Speed Sensor (Tach)	Plastic	55.2 VDC	40.8 VDC	6400 RPM	650 mA	Aluminum
Sanyo Denki America Inc. 9WV1248J1001	CSA, TUV, UL	IP68 - Dust Tight, Waterproof	1.45 in H2O	361.2 Pa	0.97 lb	440 g	48 VDC	3 Wire Leads	38 mm	6.27 mł/min	224 CFM	Ball	31.2 W	120 mm	120 mm	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	64 dB(A)	Locked Rotor Protection, Speed Sensor (Tach)	Plastic	55.2 VDC	40.8 VDC	6400 RPM	650 mA	Aluminum
Sanyo Denki America Inc. 9WV1248J1D001	CSA, TUV, UL	IP68 - Dust Tight, Waterproof	1.45 in H2O	361.2 Pa	0.97 lb	440 g	48 VDC	3 Wire Leads	38 mm	6.27 mł/min	224 CFM	Ball	31.2 W	120 mm	120 mm	-20 °C	70 °C	-20 C	70 °C	Tubeaxial	64 dB(A)	Locked Rotor Sensor	Plastic	55.2 VDC	40.8 VDC	6400 RPM	650 mA	Aluminum
