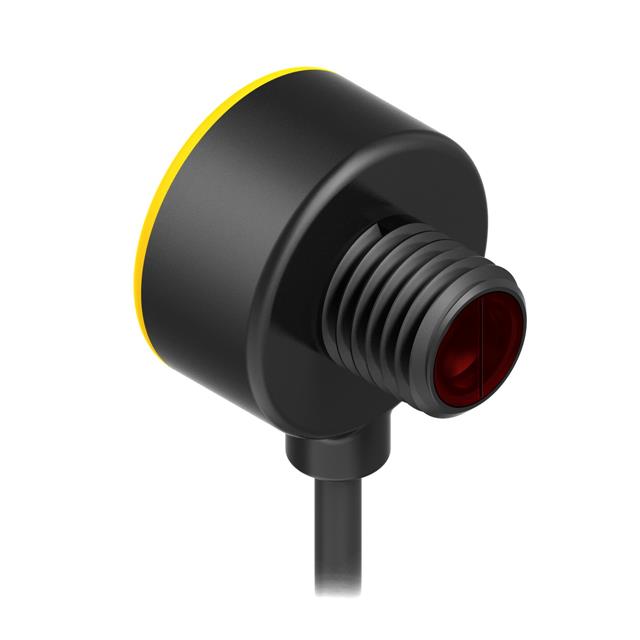

T8RP6D100Q

Active

BANNER ENGINEERING

T8 SERIES: DIFFUSERANGE: 100

Search across all available documentation for this part.

Active

BANNER ENGINEERING

T8 SERIES: DIFFUSERANGE: 100

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Connection Method	Ingress Protection	Sensing Distance	Sensing Distance	Output Configuration	Sensing Method
BANNER ENGINEERING T8RP6D100Q	1 ms	Red LED	55 °C	-20 C	30 VDC	10 VDC	Connector	NEMA 6P IEC IP67	3.937 in	100 mm	PNP - Dark-ON	Diffuse
BANNER ENGINEERING T8RP6D50Q	1 ms	Red LED	55 °C	-20 C	30 VDC	10 VDC	Connector	NEMA 6P IEC IP67	1.969 in	50 mm	PNP - Dark-ON	Diffuse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 143.00
Newark	Each	1	$ 146.00

General part information

Diffuse Optical Sensor 3.937" (100mm) PNP - Dark-ON
