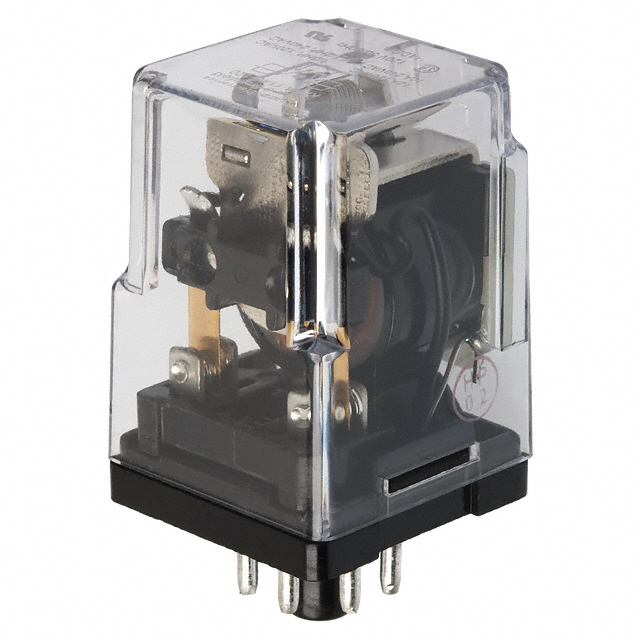

KRPA-5DG-110

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 10A 110V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 10A 110V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Voltage	Coil Type	Coil Current	Must Operate Voltage	Mounting Type	Load - Max Switching [Max]	Coil Resistance	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Coil Insulation	Switching Voltage	Termination Style	Relay Type	Approval Agency	Contact Rating (Current)
TE Connectivity Potter & Brumfield Relays KRPA-5DG-12	12 VDC	Non Latching	100 mA	9 VDC	Socketable	2400 VA	120 Ohms	Silver Cadmium Oxide (AgCdO)	-45 °C	70 °C	SPDT (1 Form C)	Class B	240 VAC	Plug In 8 Pin (Octal)	General Purpose	CSA UR	10 A
TE Connectivity Potter & Brumfield Relays KRPA-5DG-6		Non Latching	188 mA	4.5 VDC	Socketable	2400 VA	32 Ohms	Silver Cadmium Oxide (AgCdO)	-45 °C	70 °C	SPDT (1 Form C)	Class B	240 VAC	Plug In 8 Pin (Octal)	General Purpose	CSA UR	10 A
TE Connectivity Potter & Brumfield Relays KRPA-5DG-110	110 VDC	Non Latching	11.5 mA	82.5 VDC	Socketable	2400 VA		Silver Cadmium Oxide (AgCdO)	-45 °C	70 °C	SPDT (1 Form C)	Class B	240 VAC	Plug In 8 Pin (Octal)	General Purpose	CSA UR	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 36.36

General part information

General Purpose Relay SPDT (1 Form C) 110VDC Coil Socketable
