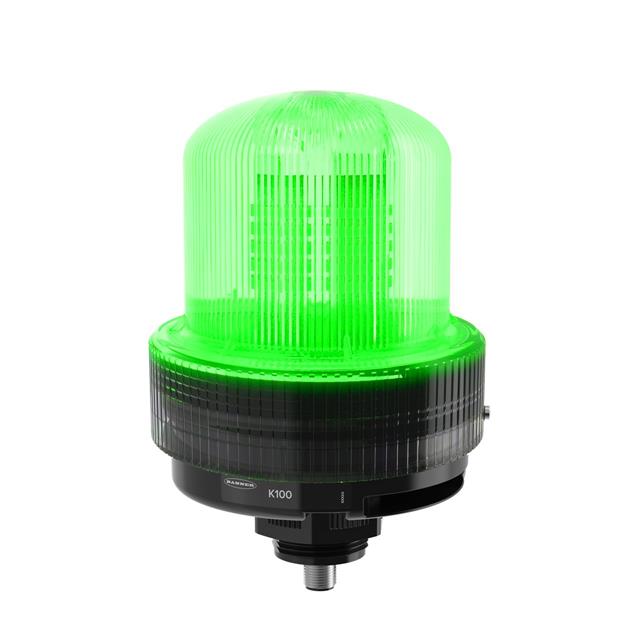

K100PBLZGYRAQ

Active

BANNER ENGINEERING

BEACON/SOUNDER, LED, GREEN, RED, YELLOW, 5-PIN QUICK DISCONNECT, MULTIPLE TONE, 101 DB, 240 VAC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

BEACON/SOUNDER, LED, GREEN, RED, YELLOW, 5-PIN QUICK DISCONNECT, MULTIPLE TONE, 101 DB, 240 VAC

Technical Specifications

Parameters and characteristics for this part

Part	Function - Audible	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function - Lighting	Type	Features	Number of Stacks	Light Color	Termination Style
BANNER ENGINEERING K100PBLZGYRA	Programmable	100 VAC	240 VAC	-40 °C	60 °C	Steady	Complete Unit	Alarm	1	Green Red Yellow	Wire Leads
BANNER ENGINEERING K100PBLZGYRAQ	Programmable	100 VAC	240 VAC	-40 °C	60 °C	Steady	Complete Unit	Alarm	1	Green Red Yellow	Connector
BANNER ENGINEERING K100PBLZGYR		100 VAC	240 VAC	-40 °C	60 °C	Steady	Complete Unit		1	Green Red Yellow	Wire Leads
BANNER ENGINEERING K100PBLYAQ		12 V	48 V	-40 °C	60 °C	Steady	Complete Unit		1	Yellow	M12
BANNER ENGINEERING K100PBLGYRAQ	Programmable	12 V	48 V	-40 °C	60 °C	Steady	Complete Unit	Alarm	1	Green Red Yellow	M12
BANNER ENGINEERING K100PBLGYRQP	Programmable	12 V	48 V	-40 °C	60 °C	Steady	Complete Unit	Alarm	1	Green Red Yellow	M12
BANNER ENGINEERING K100PBLGYRAQP	Programmable	12 V	48 V	-40 °C	60 °C	Steady	Complete Unit	Alarm	1	Green Red Yellow	M12
BANNER ENGINEERING K100PBLGYRA	Programmable	12 V	48 V	-40 °C	60 °C	Steady	Complete Unit	Alarm	1	Green Red Yellow	Cable with Connector
BANNER ENGINEERING K100PBLZGYRQ		100 VAC	240 VAC	-40 °C	60 °C	Steady	Complete Unit		1	Green Red Yellow	Connector
BANNER ENGINEERING K100PBLGYR		12 V	48 V	-40 °C	60 °C	Steady	Complete Unit		1	Green Red Yellow	M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 384.00
Newark	Each	1	$ 373.64

General part information

Stack Light Complete Unit Green, Red, Yellow LED Alarm Connector

Technical documentation and resources
