2380-6221-TG

Active

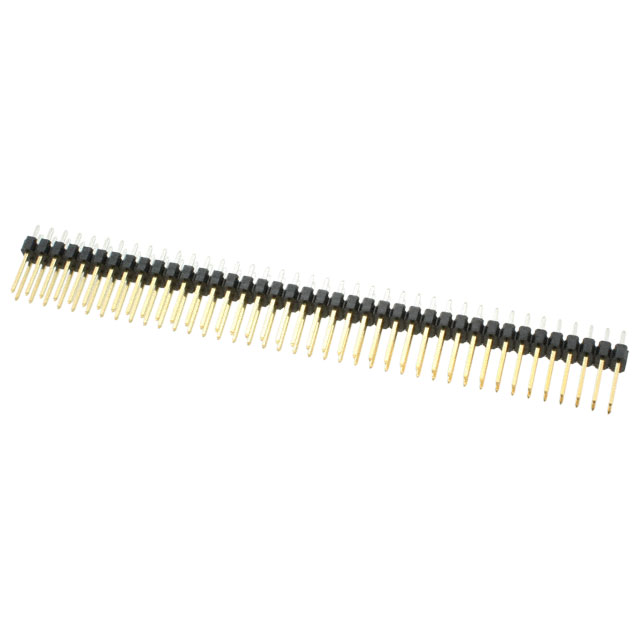

CONN HEADER VERT 80POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2380-6221-TG

Active

CONN HEADER VERT 80POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.50
		10	$ 2.56

Description

General part information

2380 Series

Connector Header Through Hole 80 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2380-6221-TG	2380 Series

Adhesive	-	Rubber
Backing, Carrier	-	Crepe Paper
Color	-	Tan
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	10 çin	10 - 30 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 - 0.76 çm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	-	5.84 mm
Contact Length - Mating [x]	0.318 "	0.23 - 0.318 in
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	-	2.79 mm
Contact Length - Post [x]	0.12 in	0.11 - 0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 - 6.14 mm
Insulation Height	-	0.242 in
Length	-	60 yds
Length	-	55 m
Length	-	180 ft
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	80	80
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.538 "	0.45 - 0.538 "
Overall Contact Length	13.67 mm	11.43 - 13.67 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shelf Life	-	12 Months
Shelf Life Start	-	Date of Manufacture
Shrouding	Unshrouded	Unshrouded
Storage/Refrigeration Temperature	-	70 °F
Storage/Refrigeration Temperature	-	21 °C
Style	Board to Board, Cable	Board to Board, Cable
Tape Type	-	Masking
Temperature Range	-	30 minutes
Temperature Range	-	163 - 325 °F
Termination	Solder	Solder, Kinked Pin, Solder
Thickness	-	7.5 mils
Thickness	-	0.0075 in
Thickness	-	0.191 mm
Usage	-	Paint Masking
Width	-	0.24 in
Width	-	6.1 mm

2380 Series

CONN HEADER VERT 80POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Fastening Type	Mounting Type	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Number of Positions Loaded	Material Flammability Rating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Number of Positions	Number of Rows	Overall Contact Length	Overall Contact Length	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Style	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Length	Length	Length	Backing, Carrier	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Shelf Life Start	Tape Type	Width [x]	Width [x]	Shelf Life	Color	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Adhesive	Usage	Contact Length - Post	Insulation Height [custom]	Contact Length - Mating [x]
3M 2380-6121TG	0.1 in	2.54 mm	3 A	Push-Pull	Through Hole	Unshrouded	Tin-Lead	10 çin	0.25 çm	Black	All	UL94 V-0	Square	0.12 in	3.05 mm	Gold	80	2	0.45 "	11.43 mm	Solder	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	105 ░C	-55 °C	0.23 in	5.84 mm	Male Pin	Board to Board, Cable	Header	2.54 mm	0.1 in
3M 2380-6MMX55M																																				60 yds	55 m	180 ft	Crepe Paper	30 minutes	163 °C, 325 °F	7.5 mils	0.0075 in	0.191 mm	Date of Manufacture	Masking	0.24 in	6.1 mm	12 Months	Tan	70 °F	21 °C	Rubber	Paint Masking
3M 2380-5221TG	0.1 in	2.54 mm	3 A	Push-Pull	Through Hole, Right Angle	Unshrouded	Tin-Lead	10 çin	0.25 çm	Black	All	UL94 V-0	Square	0.11 in		Gold	80	2			Solder		6.14 mm	2.54 µm	100 µin	Copper Alloy	105 ░C	-55 °C	0.318 "		Male Pin	Board to Board, Cable	Header	2.54 mm	0.1 in																				2.79 mm	0.242 in	8.08 mm
3M 2380-5121TG	0.1 in	2.54 mm	3 A	Push-Pull	Through Hole, Right Angle	Unshrouded	Tin-Lead	10 çin	0.25 çm	Black	All	UL94 V-0	Square	0.11 in		Gold	80	2			Solder		6.14 mm	2.54 µm	100 µin	Copper Alloy	105 ░C	-55 °C	0.23 in	5.84 mm	Male Pin	Board to Board, Cable	Header	2.54 mm	0.1 in																				2.79 mm	0.242 in
3M 2380-6121TB	0.1 in	2.54 mm	3 A	Push-Pull	Through Hole	Unshrouded	Tin-Lead	30 Áin	0.76 Ám	Black	All	UL94 V-0	Square	0.12 in	3.05 mm	Gold	80	2	0.45 "	11.43 mm	Solder	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	105 ░C	-55 °C	0.23 in	5.84 mm	Male Pin	Board to Board, Cable	Header	2.54 mm	0.1 in
3M 2380-6221-TG	0.1 in	2.54 mm	3 A	Push-Pull	Through Hole	Unshrouded	Tin-Lead	10 çin	0.25 çm	Black	All	UL94 V-0	Square	0.12 in	3.05 mm	Gold	80	2	0.538 "	13.67 mm	Solder	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	105 ░C	-55 °C	0.318 "		Male Pin	Board to Board, Cable	Header	2.54 mm	0.1 in																						8.08 mm
3M 2380-6281-TG	0.1 in	2.54 mm	3 A	Push-Pull	Through Hole	Unshrouded	Tin-Lead	10 çin	0.25 çm	Black	All	UL94 V-0	Square	0.12 in	3.05 mm	Gold	80	2	0.538 "	13.67 mm	Kinked Pin, Solder	0.1 in	2.54 mm	2.54 µm	100 µin	Copper Alloy	105 ░C	-55 °C	0.318 "		Male Pin	Board to Board, Cable	Header	2.54 mm	0.1 in																						8.08 mm
