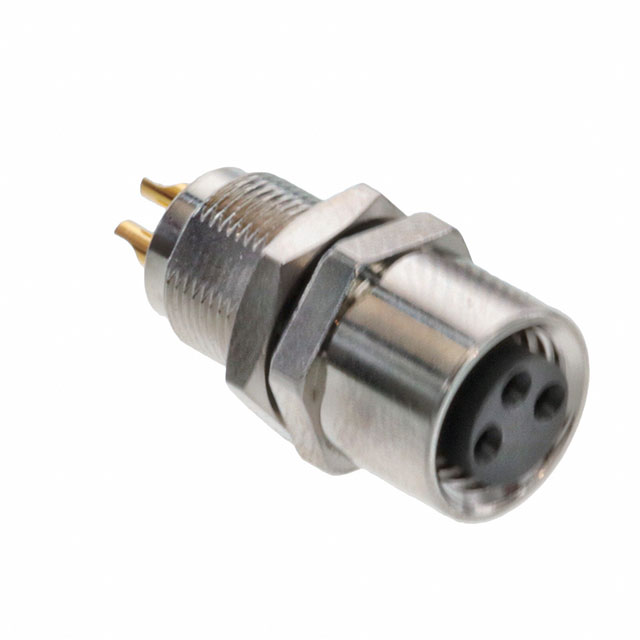

855-A03-203R004

Active

MH Connectors

CONN PLUG FMALE 3P GOLD SLDR CUP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

CONN PLUG FMALE 3P GOLD SLDR CUP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	855-A03-203R004

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M8-3
Voltage Rating	60 VDC

Part	Connector Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Insert Material	Current Rating (Amps)	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Color	Ingress Protection	Shell Finish	Mounting Feature	Shell Material	Voltage Rating	Material Flammability Rating
MH Connectors 855-A03-203R004	Female Sockets Plug	Brass	85 °C	-40 °C	Metal	Polybutylene Terephthalate (PBT)	3 A	Gold	10 çin	0.25 çm	M8-3	Silver	IP67 - Dust Tight Waterproof	Nickel	Bulkhead - Rear Side Nut	Brass	60 VDC	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 7.71

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
