7806A 010500
ActiveBelden Inc.

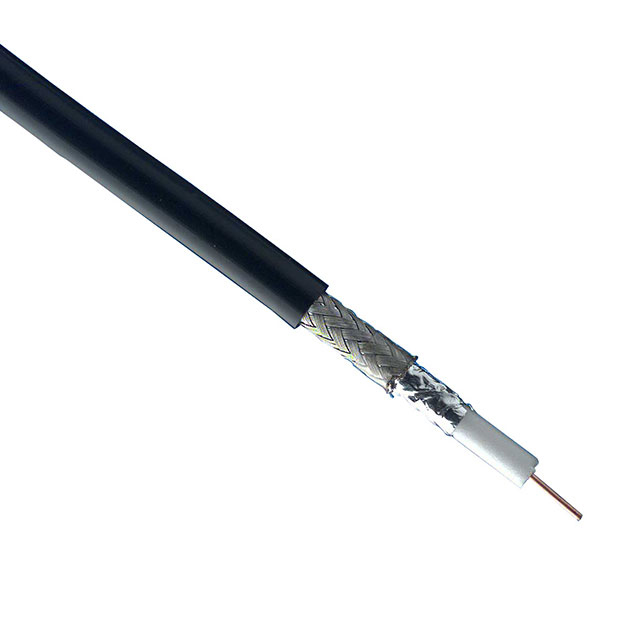

CABLE COAX RG-58 19 AWG 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7806A 010500
ActiveBelden Inc.
CABLE COAX RG-58 19 AWG 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7806A 010500 |
|---|---|
| Cable Group | RG-58 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 2.79 mm |
| Dielectric Diameter [diameter] | 0.11 in |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.195 in |
| Jacket (Insulation) Diameter [diameter] | 4.95 mm |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket Color | Black |
| Length | 152.4 m |
| Length | 6000 in |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 90 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| VoP, Velocity of Propagation | 77 |
| Wire Gauge | 19 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 310.18 | |
| 5 | $ 253.79 | |||
| 10 | $ 197.39 | |||
| 25 | $ 169.19 | |||
| 50 | $ 157.91 | |||
| Spool | 1 | $ 1044.73 | ||
| 3 | $ 966.52 | |||
| 5 | $ 933.00 | |||
| 7 | $ 910.65 | |||
| 10 | $ 888.30 | |||
Description
General part information
7806A Series
Coaxial Cable 19 AWG RG-58 100.0' (30.48m) 50 Ohms
