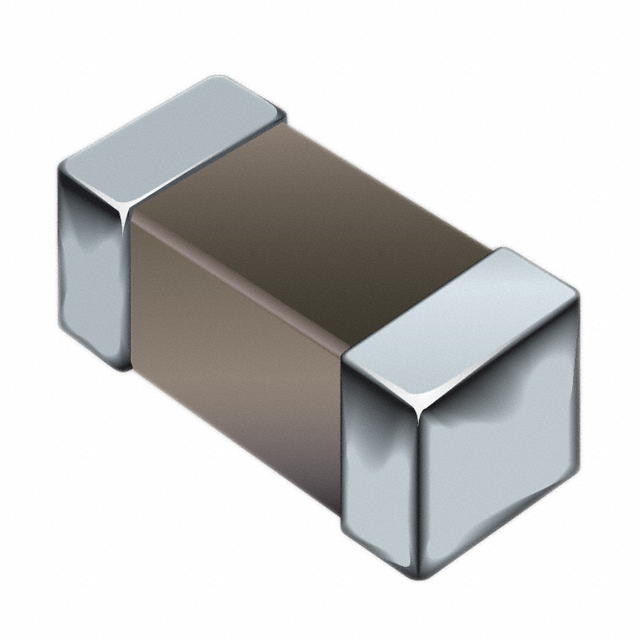

CS160808-2R7K

Active

Bourns Inc.

INDUCTOR RF CHIP SHIELDED MULTI-LAYER 2.7UH 10% 10MHZ 50Q-FACTOR FERRITE 0.05A 1OHM DCR 0603 T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CS160808-2R7K

Active

Bourns Inc.

INDUCTOR RF CHIP SHIELDED MULTI-LAYER 2.7UH 10% 10MHZ 50Q-FACTOR FERRITE 0.05A 1OHM DCR 0603 T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CS160808-2R7K

Current Rating (Amps)	50 mA
DC Resistance (DCR) [Max]	1 Ohm
Frequency - Self Resonant	40 MHz
Height - Seated (Max) [Max] [z]	0.037 "
Height - Seated (Max) [Max] [z]	0.95 mm
Inductance	2.7 µH
Inductance Frequency - Test	10 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Q @ Freq	10 MHz, 50
Shielding	Shielded
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Supplier Device Package	1608 Metric
Supplier Device Package	0603
Tolerance	10 %
Type	Multilayer

CS160808 Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Inductance	Material - Core	Type	Tolerance	Package / Case	Q @ Freq	Current Rating (Amps)	Supplier Device Package	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Self Resonant	Mounting Type	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Bourns Inc. CS160808-1R2K	0.037 "	0.95 mm	Shielded	1.2 µH	Ferrite	Multilayer	10 %	0603 (1608 Metric)	10 MHz 50	100 mA	1608 Metric	0603	-55 °C	125 °C	60 MHz	Surface Mount	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in
Bourns Inc. CS160808-68NK	0.037 "	0.95 mm	Shielded	68 nH	Ferrite	Multilayer	10 %	0603 (1608 Metric)	45 50 MHz	0.2 A	1608 Metric	0603	-55 °C	125 °C	250 MHz	Surface Mount	50 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	200 mOhm
Bourns Inc. CS160808-1R8K	0.037 "	0.95 mm	Shielded	1.8 µH	Ferrite	Multilayer	10 %	0603 (1608 Metric)	10 MHz 50	50 mA	1608 Metric	0603	-55 °C	125 °C	50 MHz	Surface Mount	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in		750 mOhm
Bourns Inc. CS160808-R82K	0.037 "	0.95 mm	Shielded	820 nH	Ferrite	Multilayer	10 %	0603 (1608 Metric)	25 MHz 30	100 mA	1608 Metric	0603	-55 °C	125 °C	75 MHz	Surface Mount	25 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in		1.4 Ohm
Bourns Inc. CS160808-R12K	0.037 "	0.95 mm	Shielded	120 nH	Ferrite	Multilayer	10 %	0603 (1608 Metric)	25 MHz 30	0.2 A	1608 Metric	0603	-55 °C	125 °C	205 MHz	Surface Mount	25 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in		300 mOhm
Bourns Inc. CS160808-1R5K	0.037 "	0.95 mm	Shielded	1.5 µH	Ferrite	Multilayer	10 %	0603 (1608 Metric)	10 MHz 50	50 mA	1608 Metric	0603	-55 °C	125 °C	55 MHz	Surface Mount	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in	650 mOhm
Bourns Inc. CS160808-2R7K	0.037 "	0.95 mm	Shielded	2.7 µH	Ferrite	Multilayer	10 %	0603 (1608 Metric)	10 MHz 50	50 mA	1608 Metric	0603	-55 °C	125 °C	40 MHz	Surface Mount	10 MHz	0.8 mm	0.063 in	1.6 mm	0.031 in		1 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.12
		10	$ 0.10
		25	$ 0.09
		50	$ 0.08
		100	$ 0.07
		250	$ 0.07
		500	$ 0.06
		1000	$ 0.05
	Digi-Reel®	1	$ 0.12
		10	$ 0.10
		25	$ 0.09
		50	$ 0.08
		100	$ 0.07
		250	$ 0.07
		500	$ 0.06
		1000	$ 0.05
	Tape & Reel (TR)	4000	$ 0.04
		8000	$ 0.04
		12000	$ 0.04
		28000	$ 0.04
		100000	$ 0.04

Description

General part information

CS160808 Series

2.7 µH Shielded Multilayer Inductor 50 mA 1Ohm Max 0603 (1608 Metric)
