Description
General part information
078320 Series

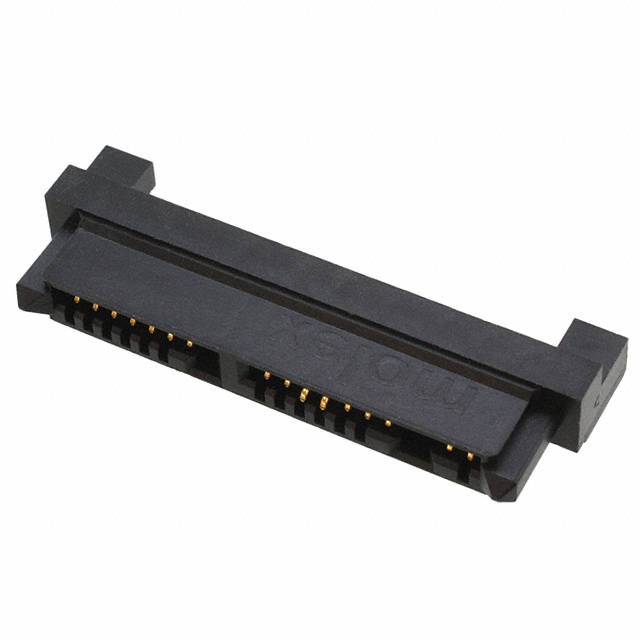

16 Position SATA, Micro Receptacle Connector Solder Surface Mount, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 0783200001 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | Micro, SATA |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Guide, Mating Guide |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 16 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
