E3MST
ActiveSwitchcraft Inc.

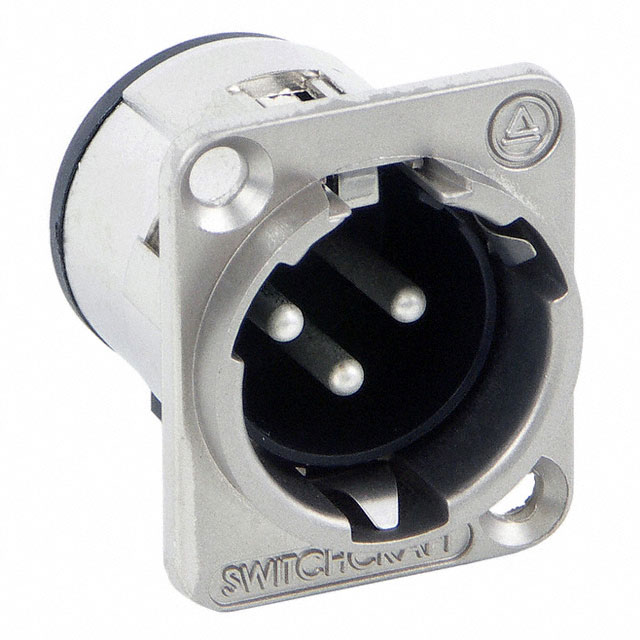

CONN RCPT MALE XLR 3P SILV SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E3MST
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SILV SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | E3MST | E3MS Series |
|---|---|---|
| Applications | Audio, Instrumentation | Audio, Instrumentation |
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Insert |
| Contact Finish - Mating | Silver | Silver, Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 15 A | 15 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Ground | Ground, Insert Only, Requires Shell |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Flange | Flange |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel, Chrome |
| Shell Material | Zinc Die Cast | Zinc Die Cast |
| Shell Size - Insert | XLR | XLR |
| Shielding | Shielded | Shielded |
| Termination | Solder | Screw, Solder |
E3MS Series
CONN RCPT MALE XLR 3P SILV SCREW
| Part | Current Rating (Amps) | Shell Size - Insert | Applications | Contact Material | Shielding | Color | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Primary Material | Contact Finish - Mating | Connector Type | Insert Material | Fastening Type | Termination | Features | Mounting Feature | Shell Finish | Orientation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. E3MSW | 15 A | XLR | Audio, Instrumentation | Copper Alloy | Shielded | Silver | 85 °C | -55 °C | Zinc Die Cast | Metal | Silver | Male Pins, Receptacle | Thermoplastic | Latch Lock | Screw | Ground | Flange | Nickel | Keyed | |
Switchcraft Inc. E3MSC | 15 A | XLR | Audio, Instrumentation | Copper Alloy | Shielded | Silver | 85 °C | -55 °C | Zinc Die Cast | Metal | Silver | Male Pins, Receptacle | Thermoplastic | Latch Lock | Ground | Flange | Nickel | Keyed | ||
Switchcraft Inc. E3MST | 15 A | XLR | Audio, Instrumentation | Copper Alloy | Shielded | Silver | 85 °C | -55 °C | Zinc Die Cast | Metal | Silver | Male Pins, Receptacle | Thermoplastic | Latch Lock | Solder | Ground | Flange | Nickel | Keyed | Panel Mount, Through Hole |
Switchcraft Inc. E3MSTBAU | 15 A | XLR | Audio, Instrumentation | Copper Alloy | Shielded | Black | 85 °C | -55 °C | Zinc Die Cast | Metal | Gold | Male Pins, Receptacle | Thermoplastic | Latch Lock | Solder | Ground | Flange | Chrome | Keyed | Panel Mount, Through Hole |
Switchcraft Inc. E3MSTAU | 15 A | XLR | Audio, Instrumentation | Copper Alloy | Shielded | Silver | 85 °C | -55 °C | Zinc Die Cast | Metal | Gold | Male Pins, Receptacle | Thermoplastic | Latch Lock | Solder | Ground | Flange | Nickel | Keyed | Panel Mount, Through Hole |
Switchcraft Inc. E3MSCQG | 15 A | XLR | Audio, Instrumentation | Copper Alloy | 85 °C | -55 °C | Silver | Insert, Male Pins | Thermoplastic | Insert Only, Requires Shell | Keyed | |||||||||
Switchcraft Inc. E3MSWEL | 15 A | XLR | Audio, Instrumentation | Copper Alloy | Shielded | Silver | 85 °C | -55 °C | Zinc Die Cast | Metal | Silver | Male Pins, Receptacle | Thermoplastic | Latch Lock | Screw | Ground | Flange | Nickel | Keyed | |
Switchcraft Inc. E3MSCB | 15 A | XLR | Audio, Instrumentation | Copper Alloy | Shielded | Black | 85 °C | -55 °C | Zinc Die Cast | Metal | Silver | Male Pins, Receptacle | Thermoplastic | Latch Lock | Ground | Flange | Chrome | Keyed |
