8282-4SG-516

Active

Conxall/Switchcraft

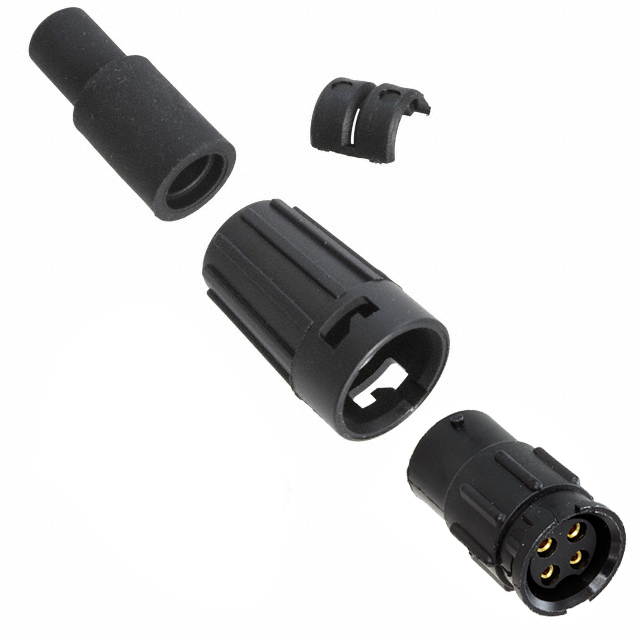

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	8282-4SG-516	8282-4SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	6.35 mm
Cable Opening	-	0.25 in
Cable Opening	-	0.22 in
Cable Opening	-	5.59 mm
Cable Opening [Max] [custom]	0.18 in	0.18 in
Cable Opening [Max] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.16 in	0.16 in
Cable Opening [Min] [custom]	4.06 mm	4.06 mm
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Backshell Material, Plating	Features	Current Rating (Amps)	Orientation	Contact Finish - Mating	Ingress Protection	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Mounting Type	Applications	Fastening Type	Shielding	Primary Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Color	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]
Conxall/Switchcraft 8282-4SG-315	Nylon, Polyamide (PA)	Backshell	Varies by Wire Gauge	Keyed	Gold	Weathertight	600 V	0.15 in, 0.17 in	3.81 mm, 4.32 mm	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Unshielded	Plastic	Brass	-40 °C	115 °C	Receptacle, Female Sockets	Black	4
Conxall/Switchcraft 8282-4SG-516	Nylon, Polyamide (PA)	Backshell	Varies by Wire Gauge	Keyed	Gold	Weathertight	600 V			Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Unshielded	Plastic	Brass	-40 °C	115 °C	Receptacle, Female Sockets	Black	4	0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8282-4SG-522	Nylon, Polyamide (PA)	Backshell	Varies by Wire Gauge	Keyed	Gold	Weathertight	600 V			Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Bayonet Lock	Unshielded	Plastic	Brass	-40 °C	115 °C	Receptacle, Female Sockets	Black	4					6.35 mm	0.25 in	0.22 in	5.59 mm
